SDA-D4000AL Modified Sine Wave Power Inverter
Product Description
SDA-D4000AL is a high-capacity DC to AC power inverter independently developed and produced by Sunchonglic, our factory located in Foshan, Guangdong, China. This 24V inverter adopts advanced modified sine wave technology, which can convert the direct current stored in solar batteries into standard 220V alternating current that can be used by daily household appliances. It supports free switching between 50Hz and 60Hz output frequency, which can adapt to the power grid standards of Africa, The Middle East, Southeast Asia and most emerging markets. With 1700W continuous output and 4000VA instantaneous peak power, it can normally drive refrigerators, water pumps, lighting equipment, small household appliances and other electrical products, which is the ideal choice for off-grid solar power systems and household emergency backup power.
Features:
1. Multiple comprehensive safety protection functions
The inverter has built-in intelligent protection chips, including battery anti-reverse connection protection, low voltage alarm and automatic shutdown protection, over voltage protection, short circuit protection, overload protection and over temperature automatic power reduction protection. When the working state is abnormal, the machine will automatically cut off the output in time, which can effectively avoid damage to the inverter itself and the connected electrical equipment, and greatly extend the service life of the product. Built-in internal circuit fuse, easy to replace after overcurrent failure, low maintenance cost.
2. Humanized multi-port power supply design

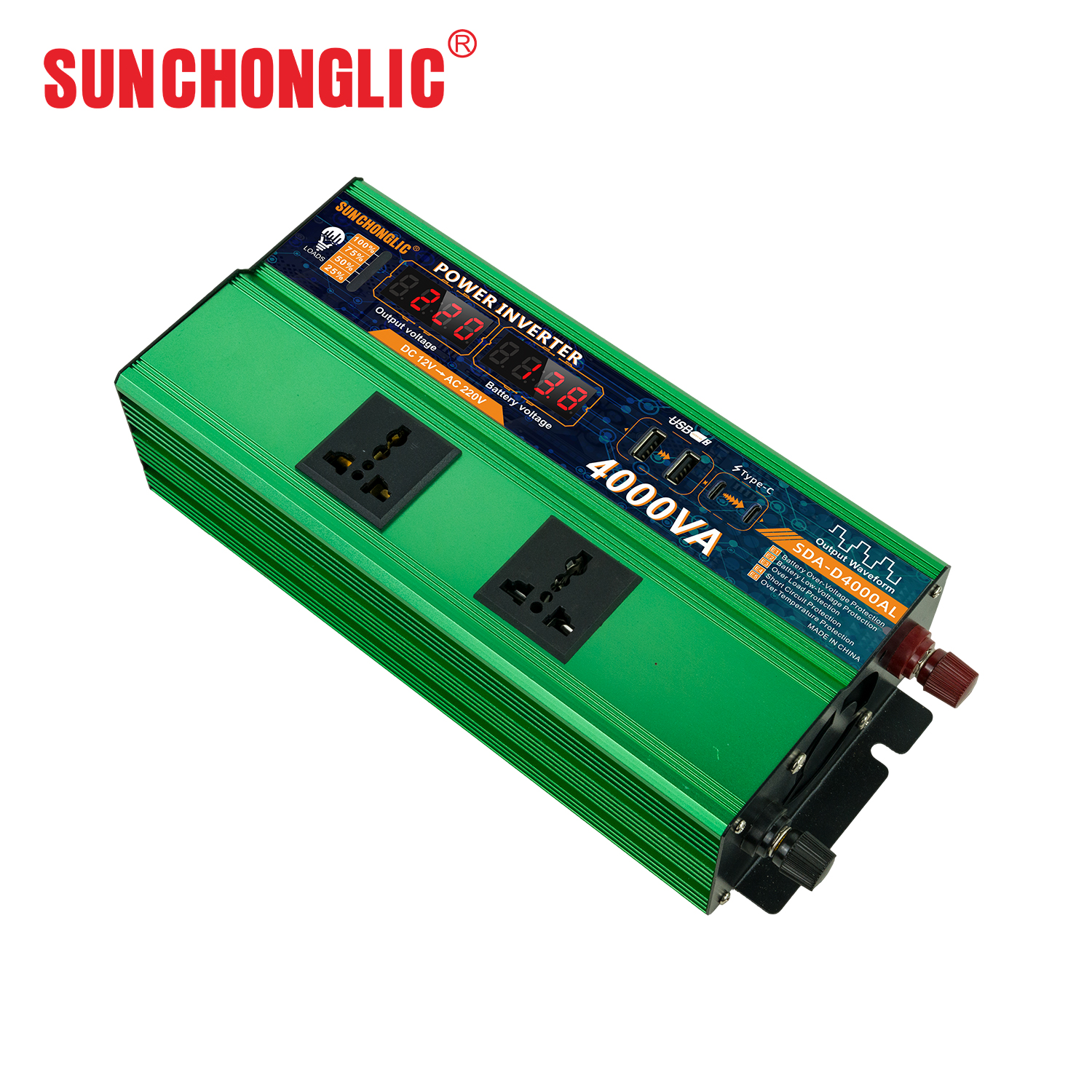

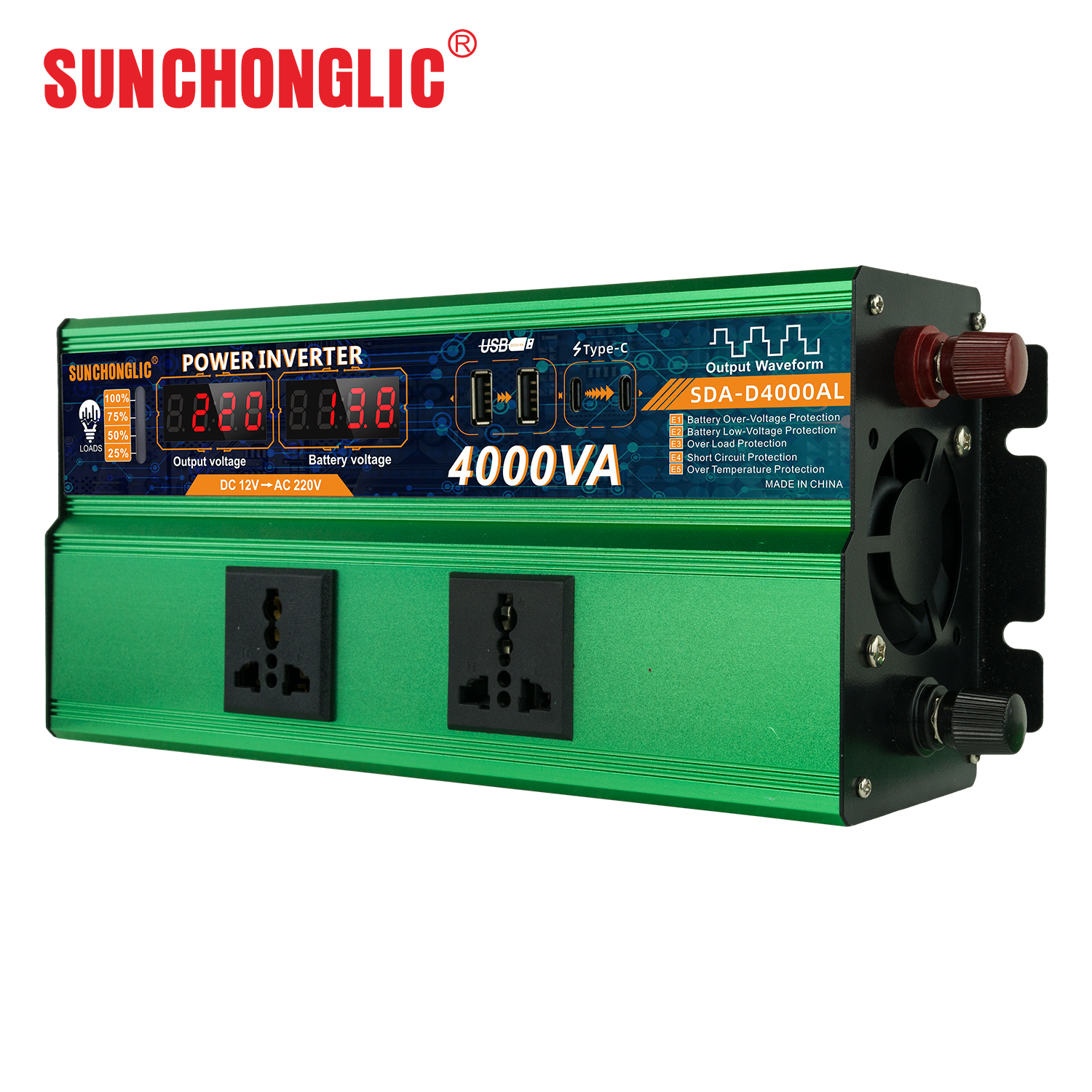

This model is configured with two universal AC sockets, which can supply power to two high-power electrical appliances at the same time. At the same time, it is equipped with standard USB port and Type-C interface, which can charge mobile phones, tablets, power banks and other digital devices directly without additional chargers, meeting various power needs of users.
3. Clear LED digital display screen

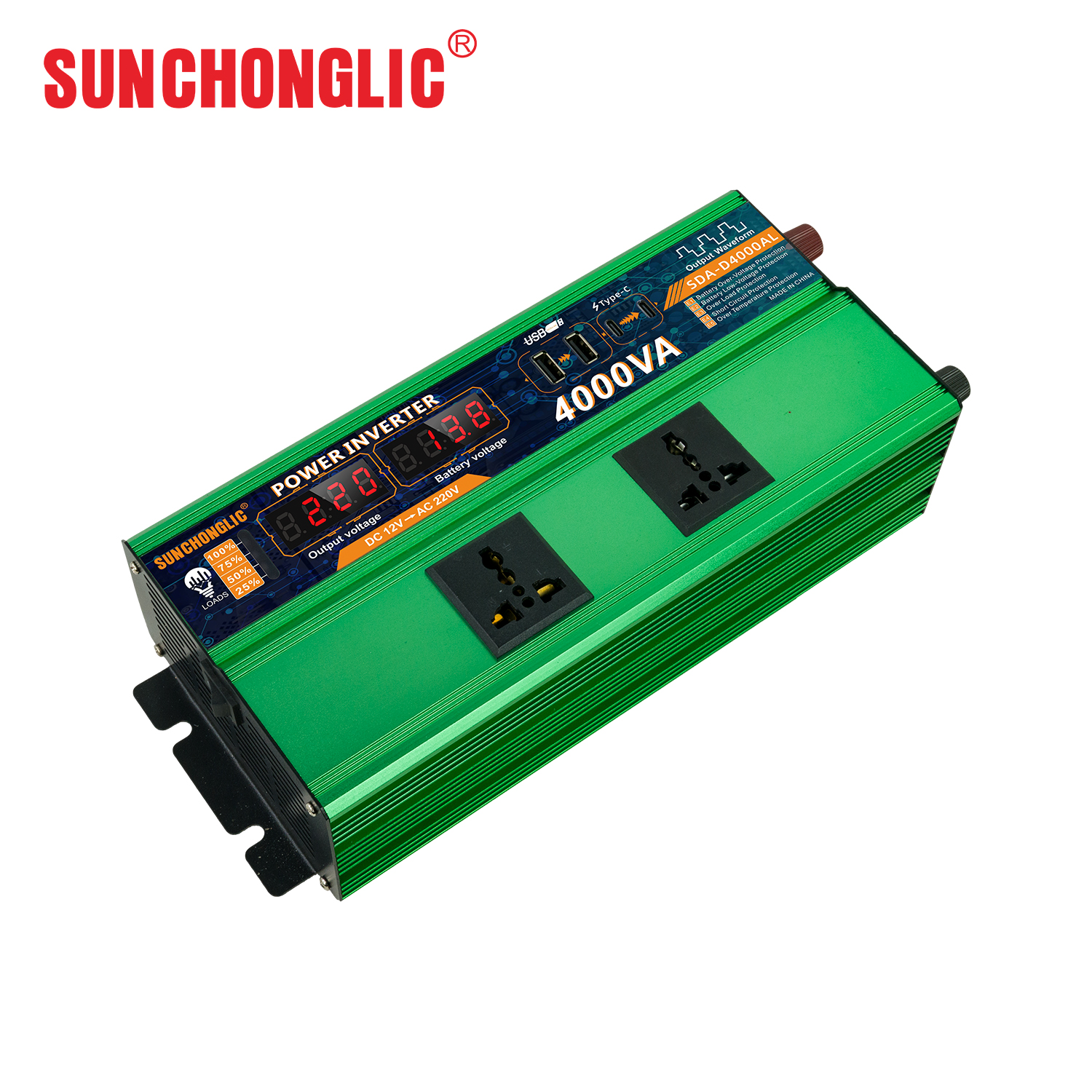

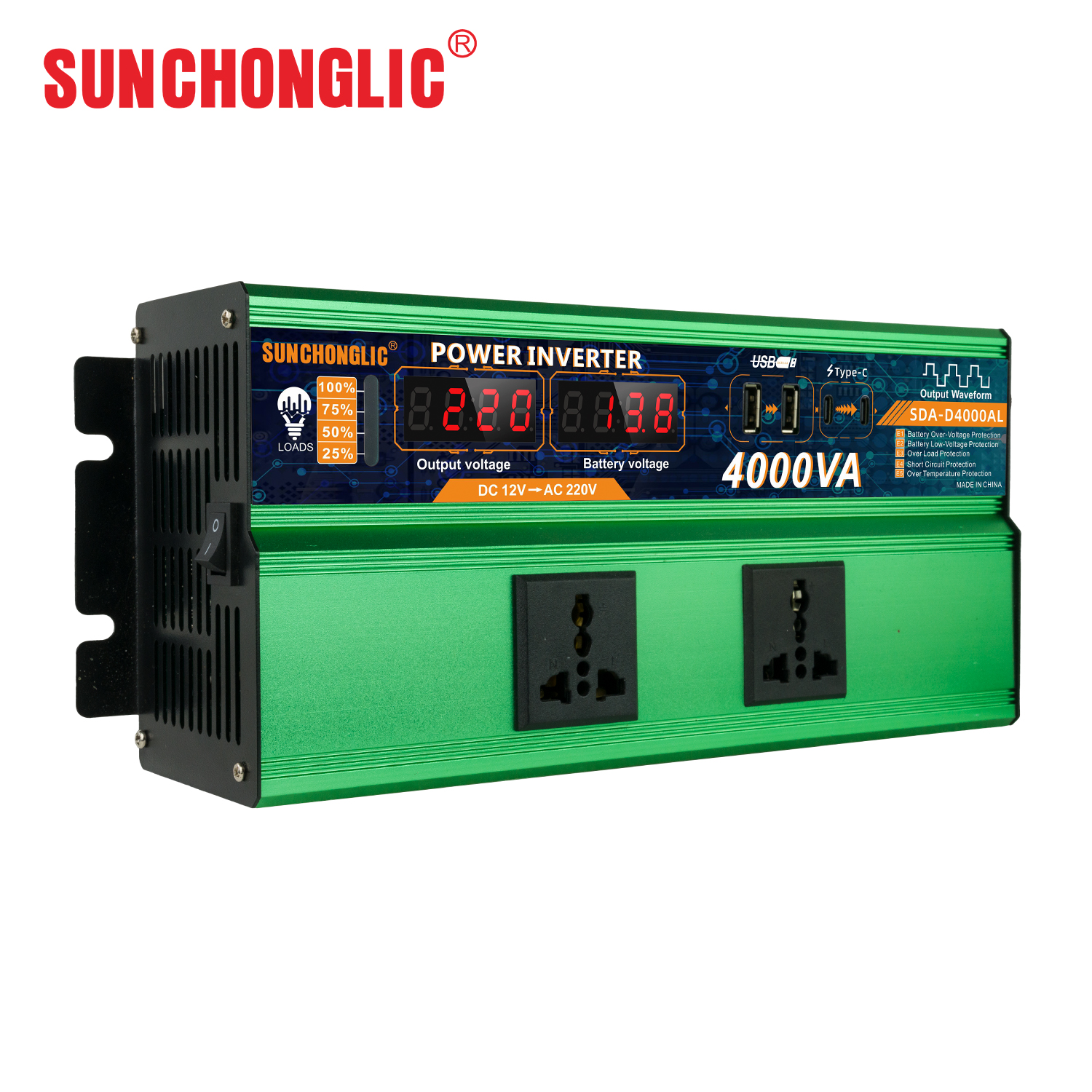

Equipped with a high-brightness LED digital display, it can dynamically display the input battery voltage, AC output voltage in real time. Users can intuitively understand the remaining power of the battery and the working state of the inverter at any time, which is convenient for operation and maintenance.
4. Excellent heat dissipation performance and low energy consumption

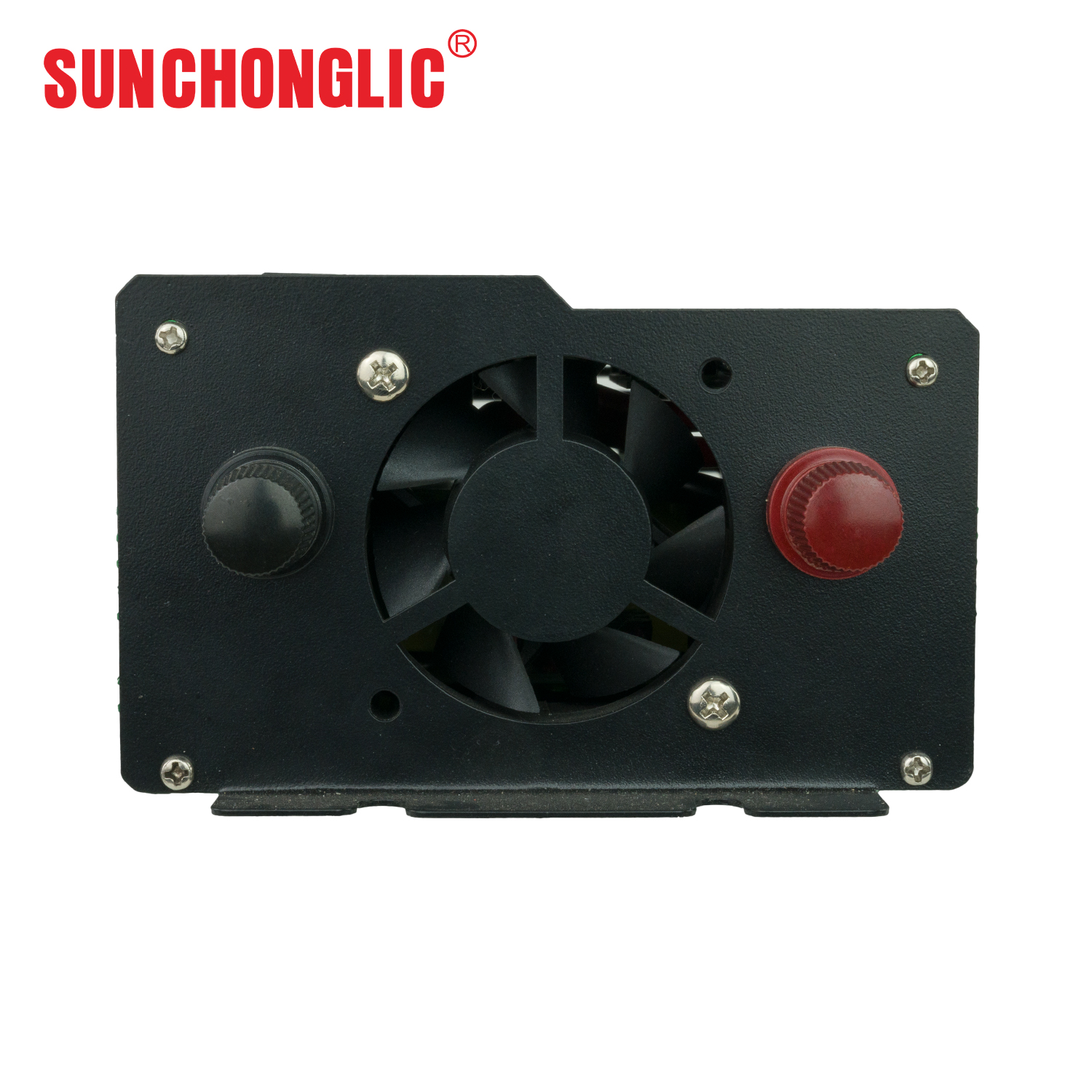

Adopts large-area aluminum alloy heat dissipation shell and built-in silent cooling fan, which automatically adjusts the fan speed according to the working temperature, reduces noise while ensuring good heat dissipation. No-load current is less than 0.5A, the whole machine conversion efficiency exceeds 85%, which can reduce battery power loss and improve the utilization rate of solar energy.
Detailed Technical Specifications
Model: SDA-D4000AL
Input voltage: DC 24V
Input voltage working range: 21V – 30V
Low voltage alarm voltage: 21V
Low voltage automatic cut-off voltage: 20V
Over voltage protection voltage: 31V
Continuous rated output power: 1700W
Maximum peak surge power: 4000VA
Output voltage: AC 220V
Optional output frequency: 50Hz / 60Hz
USB output parameter: DC 5V 1A
No-load current: ＜0.5A
Whole machine efficiency: >85%
Winding: Pure copper winding
Protection functions: Reverse polarity, low voltage, over voltage, short circuit, overload, over temperature
Widely Application Areas
1. Off-grid solar photovoltaic systems: Widely used in rural areas, villages, remote areas without public power grid, matching solar panels and battery packs to provide 24-hour stable power supply.
2. Household emergency backup power: Used as a standby power supply for families, which can supply power to lighting, refrigerators, routers and other equipment when the city power is cut off.
3. Outdoor and engineering use: Suitable for field construction, outdoor camps, pastoral areas and other scenes that need mobile power supply.
Factory Wholesale Information
Brand: Sunchonglic
Place of origin: Foshan, Guangdong, China
Minimum order quantity: Accept small trial order and large bulk wholesale
Production lead time: 40 days
Packing: Standard export carton packaging, safe for sea transportation
We support OEM & ODM customized services, including printing customer brand logo, adjusting product parameters according to different national market requirements. Welcome distributors, wholesalers and importers all over the world to cooperate with us.
