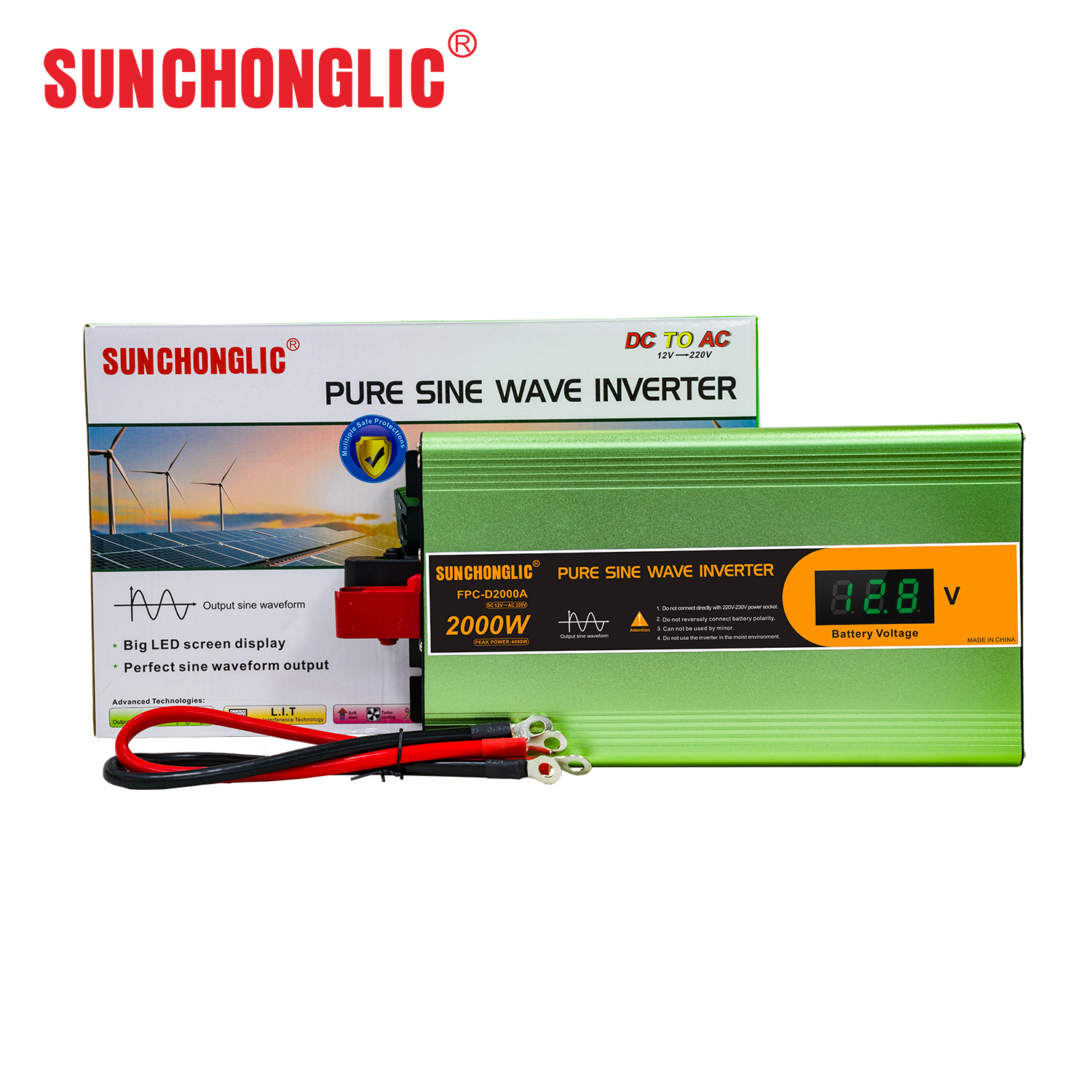

What is feature of 3000w pure sine wave inverter dc 12v to ac 220v with big screen ?
1.Robust AC Power Delivery: Generates a pure sine wave AC output of 2000W at 220V/50Hz for demanding heavy-duty applications.
2.Versatile Input with Intelligent Safeguards: Accepts a wide DC input rangeand incorporates protective features including low-voltage warning alerts, automatic low-voltage shutdown, and overvoltage cutoff.
3.Superior Energy Efficiency: Delivers peak conversion efficiency exceeding 85%, significantly reducing energy waste during operation.
4.Comprehensive Safety Protocols: Integrates multiple protective layers: reverse connection protection, strict prohibition against direct mains connection, ban on operation in wet/humid locations, and restriction from use by minors.
5.Ultra-Compact & Highly Portable: Engineered with a minimized footprint and reduced weight for effortless transport and deployment.
6.Convenient Device Charging: Features a dedicated USB output port to conveniently charge smartphones, tablets, and other small electronics on-the-go.
>>>Product Specifications
| Model | FPC-D2000A | |
| Input | No-load current | <1.6A |
| Working volt | DC12V | |
| Voltage range | 10.5-15V | |
| Alarm voltage | 10.5V | |
| Low -voltage protection | 10V | |
| Overvoltage protection | 15.5V | |
| Output | Output voltage | AC220V |
| Frequanoy | 50Hz | |
| Output power | 2000W | |
| USB output | 5V/2.5A | |
| Effciency maximum | >85% | |
| Product size | 360*180*90mm | |
| Weight | 2.3Kg | |

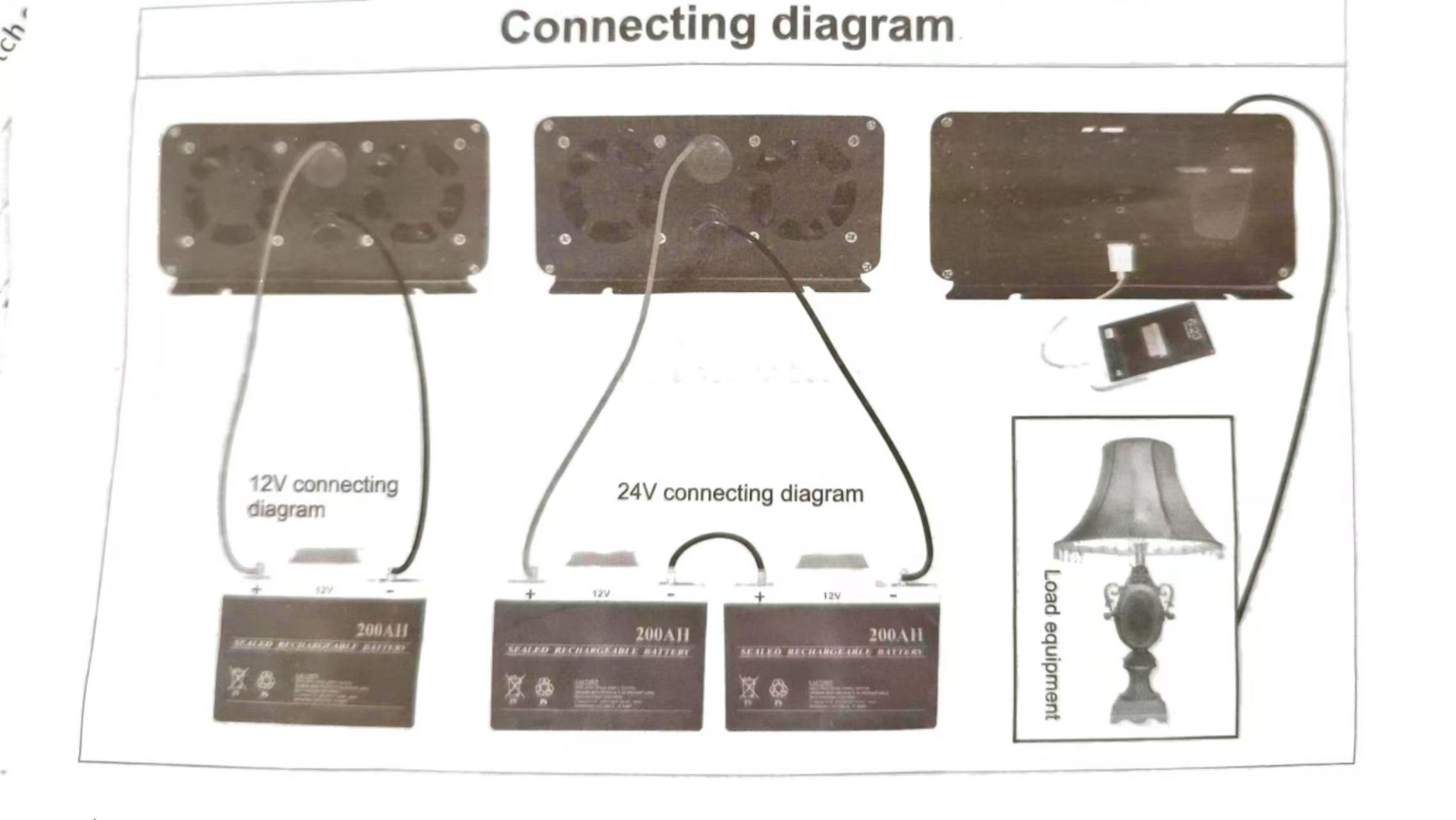

Installation connection steps（please refer to the above connection diagram）:
1. First of all, turn off the inverter power.
2. Use the black DC cable to connect the negative terminal of the battery and the black post head of the inverter.
3. Use the red DC cable to connect the anode terminal of the battery and the red post head of the inverter.
4. Plug the power plug of the equipment in the inverter's output socket.
5. Press the inverter's switch then it can be used.
Dismantle steps:
1. First of all, turn off the inverter power.
2. Disconnect the power plug.
3. Dismantle the red DC cable.
4. Dismantle the black DC cable.
