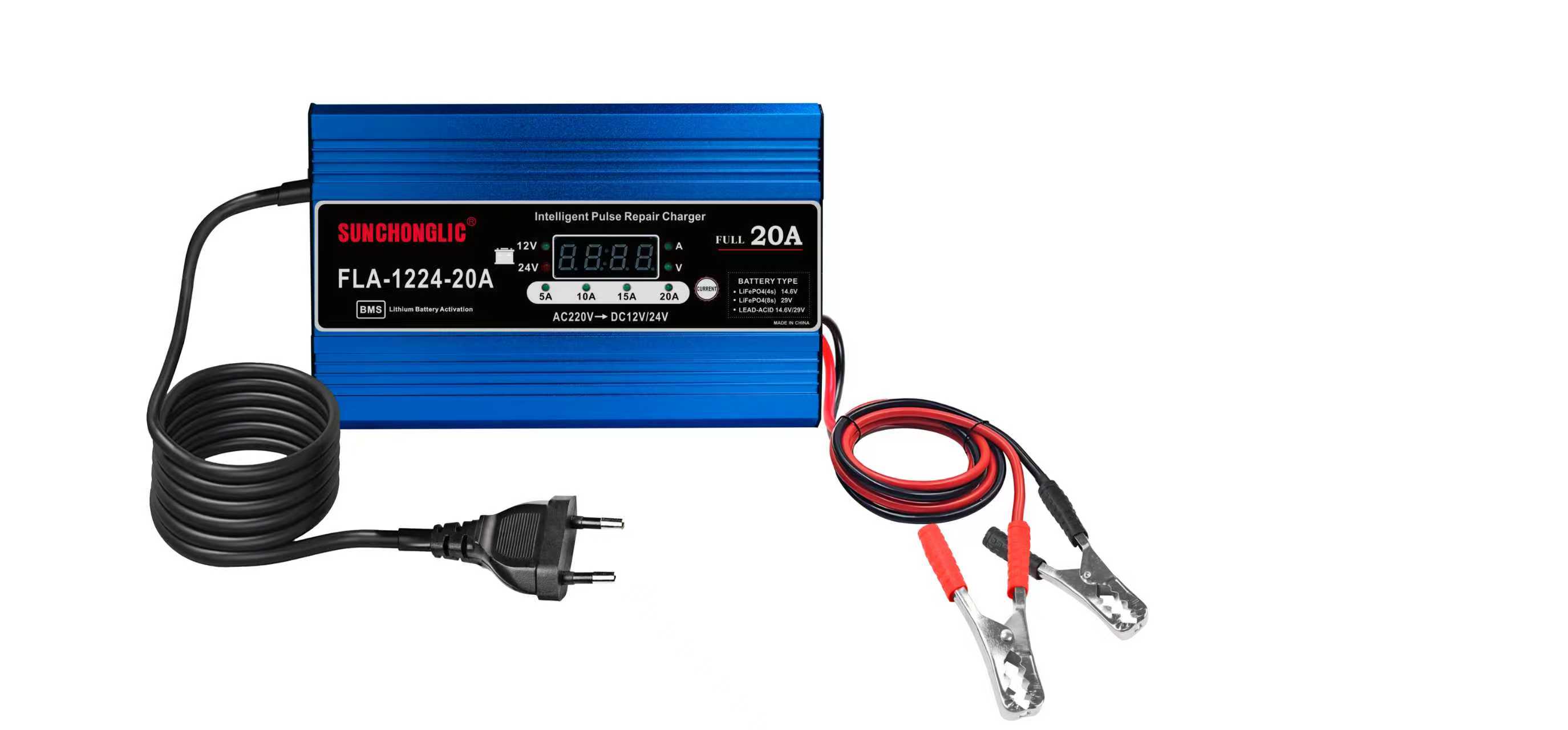

Universal Smart Charger Auto 12V 24V Pulse Repair LiFePO4 Wake Up LCD Display Full Protection
What is feature of universal smart charger auto 12v 24v pulse repair lifepo4 wake up lcd display full protection ?
Automatically detects and adapts to charge both 12V and 24V battery systems, eliminating the need for manual selection.
Suitable for a broad range of 12V or 24V batteries, including Lead-Acid and Lithium Iron Phosphate (LiFePO4), with a capacity from 7Ah to 120Ah.
Features built-in safeguards against short circuits and reverse polarity connections, ensuring operational safety.
Incorporates a pulse activation mode to recover and recondition aged or sulfated batteries, extending their service life.
Specifically designed to activate and charge Lithium Iron Phosphate batteries that have entered low-voltage protection shutdown.
Equipped with a large, clear digital screen that provides real-time monitoring of charging status and battery parameters.
>>>Product Specifications
| Model | FLA-10A+ | FLA-20+ |
| Input rated voltage (AC) | 150-250V | |
| Input rated frequency | 47-63Hz | |
| Output voltage (DC) | 14.6V, 29V | |
| Battery voltage recognition method | Automatically recognizes (prohibited to connect if battery voltage>35V) | |
| Maximum charging current | 10A for 12V battery;5.5A for 24V battery | |
| Suitable battery voltage (DC) | 12V, 24V | |
| Fan control | Operates at temperatures ≥60°℃ and stops at <50℃; operates at currents ≥1.5A and stops at =1.5A | |
| Full load conversion efficiency | ≥84% | |
| Operating temperature range | -40℃ to +90°℃ | |
| Mechanical shock and vibration resistance level | Complies with SAE J1378 requirements | |
