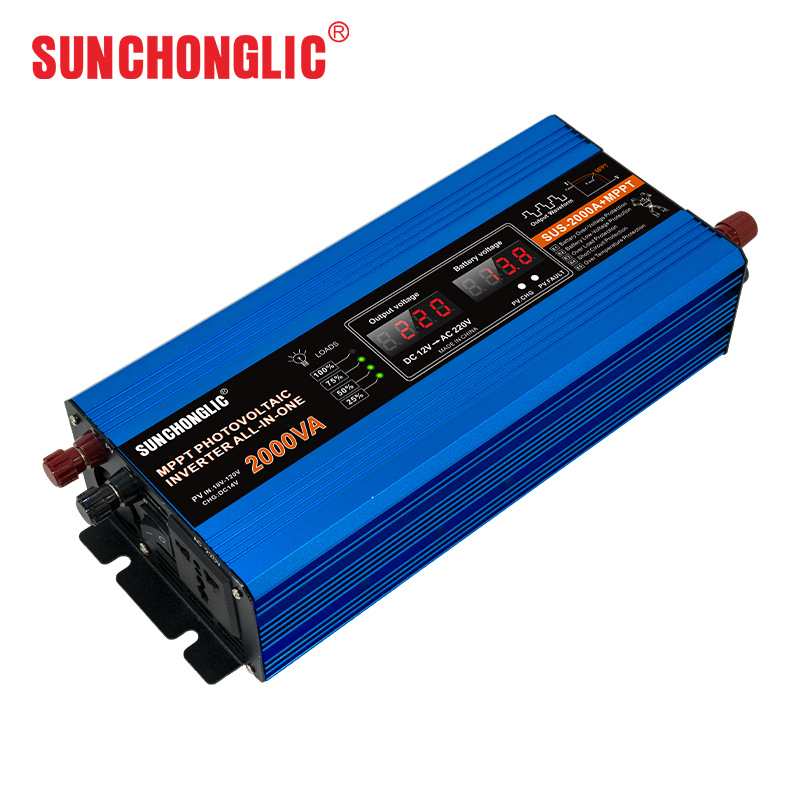

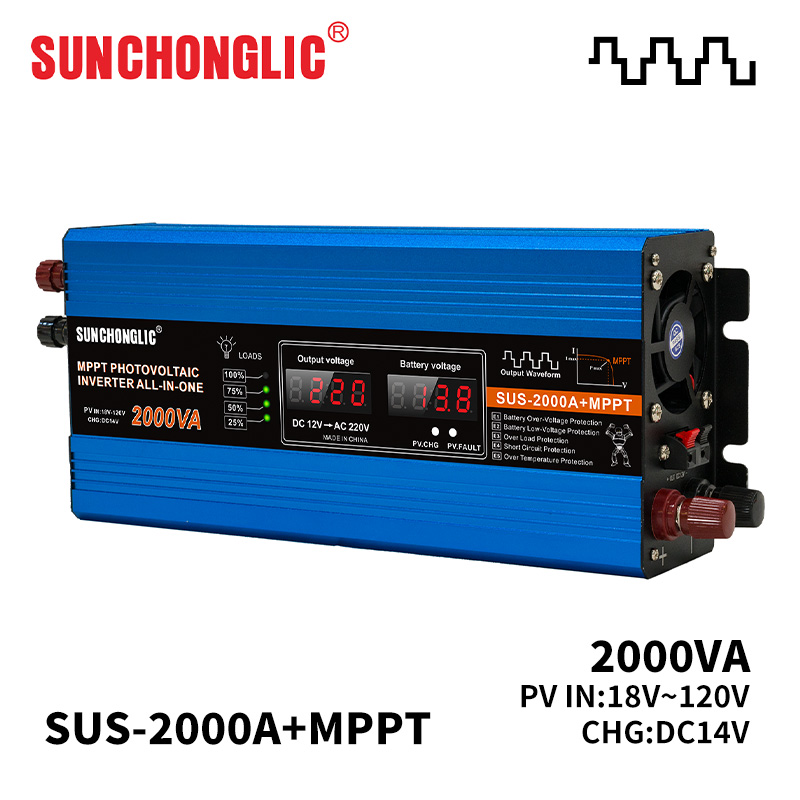

2000W Solar Charge Inverter MPPT Modified Sine Wave Power Inverter 12v To 220v
What is feature of 2000w solar charge inverter mppt modified sine wave power inverter 12v to 220v ?
This product series is designed to regulate the inverter equipment; the external battery pack offers enhanced convenience and can be flexibly customized according to client requirements.
This lineup of systems encompasses household configurations ranging from 100W to 1000W in capacity, making it the top recommendation for high-performance elevated configuration setups.
AC output: 220 volts to support devices such as computers, televisions, fans, among other appliances.
DC output: 12V/24V and 5V options, suitable for LED lighting, surveillance cameras, and charging mobile devices.
>>>Product Specifications
| Model | SUS-2000A+MPPT |
| The built-in controller | 25A-30A |
| Featured solar panel specifications | 100~150W/36Vx2 |
| External battery | 12V 100Ah~150Ah |
| Output voltage of the inverter | AC 220V+/-5% |
| Maximum continuous power | 1200W |
| Peak power | 3000W |
| No load current | <0.5A |
| DC input voltage | DC9.7V~15.5V |
| Output frequency | 50+/-3Hz |
| Conversion efficiency | >90% |
| High pressure cut off | 15V+/-0.5V |
| Low voltage alarm | 11.2V+/-0.3V |
| Low cut | 10V+/-0.3V |
| Overload, short circuit protection | There are |
| Output waveform | Fixed wave |
| Cooling mode | Fan cooled |
| Working environment temperature | -20℃~+70℃ |
| Relative humidity | <90%RH |
Leveraging our extensive expertise as a long-standing manufacturer in the solar photovoltaic sector, we operate a state-of-the-art facility dedicated to producing mission-critical components: efficient solar power inverters, dependable AGM/GEL lead-acid battery chargers, intelligent solar charge controllers, and complementary equipment. Synonymous with unwavering quality, Sunchonglic products are designed and built to provide consistent, high-performance operation.
Connect with us to discover how our proven solutions can meet your specific energy needs!
>>>Installation Instructions
Switch on the inverter, then connect the converter to the battery with good contact.
Solar panels and solar energy converter suitable input connected well, ensure good contact.
Confirm that power of AC product is lower than nominal power before using. Put 220V plug of the AC product directly into the 220V socket of the converter and ensure that the sum of power that connected to two sockets is lower than nominal power.
Turn on the inverter, the green light's litting up means that it is in proper working order.
The red light's litting up means that the inverter has turned off because of over voltage, low voltage, over-load orover temperature.
In many cases, the converter alarm turn off because the carcigarette lighter socket output is limited. You need to start your vehicle or reduce power and then it would be back to normal.
