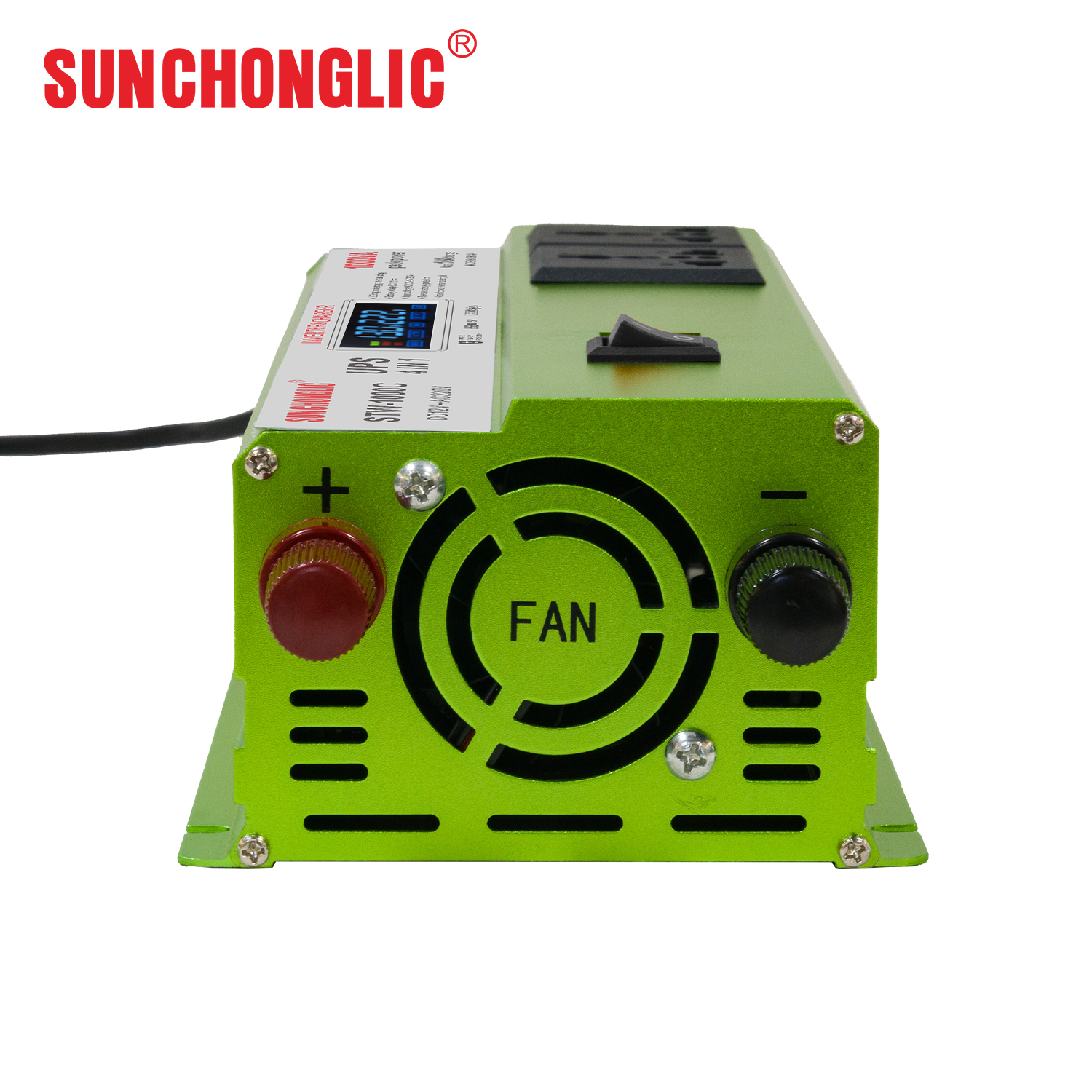

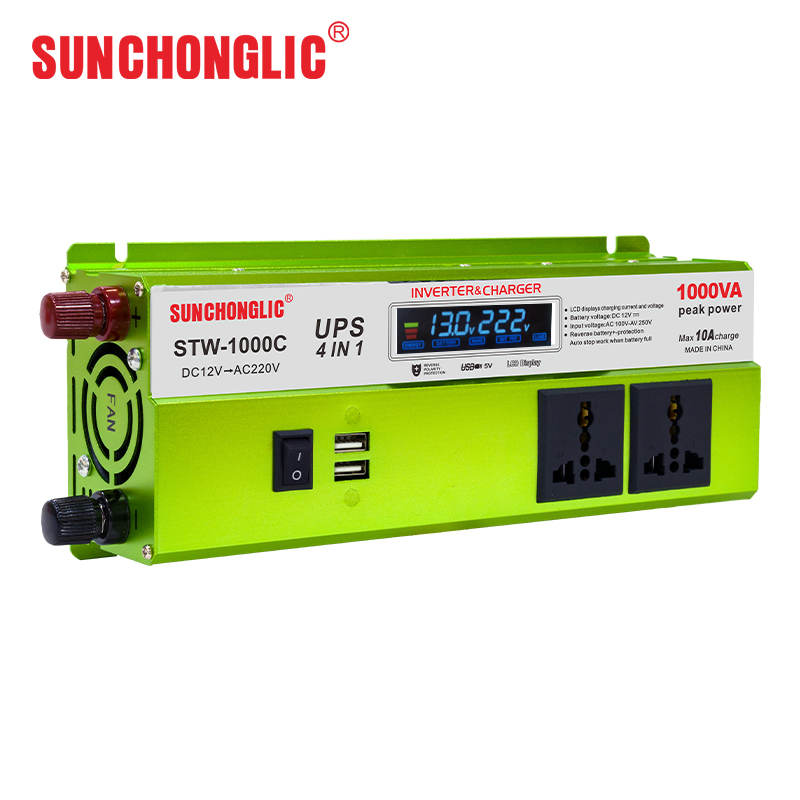

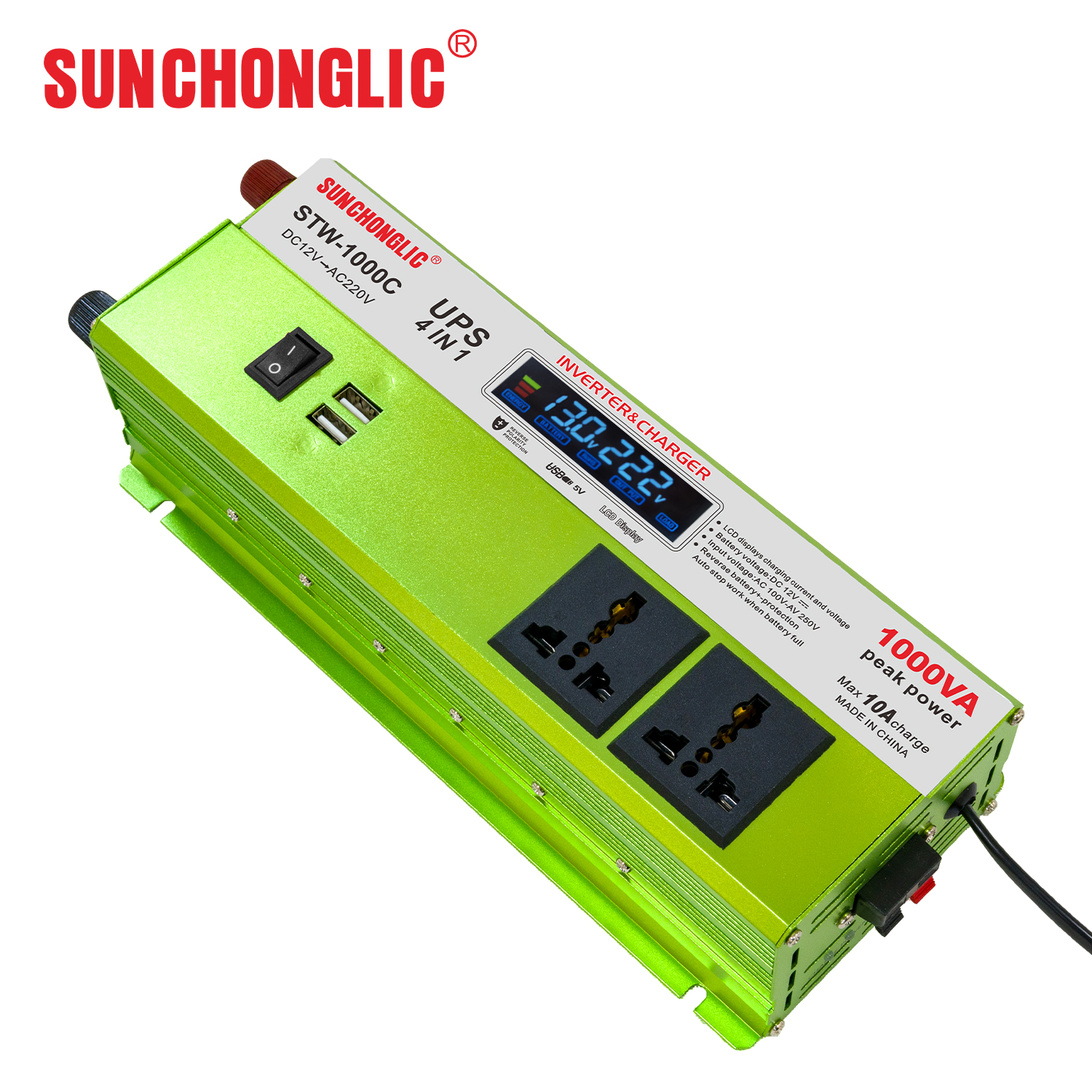

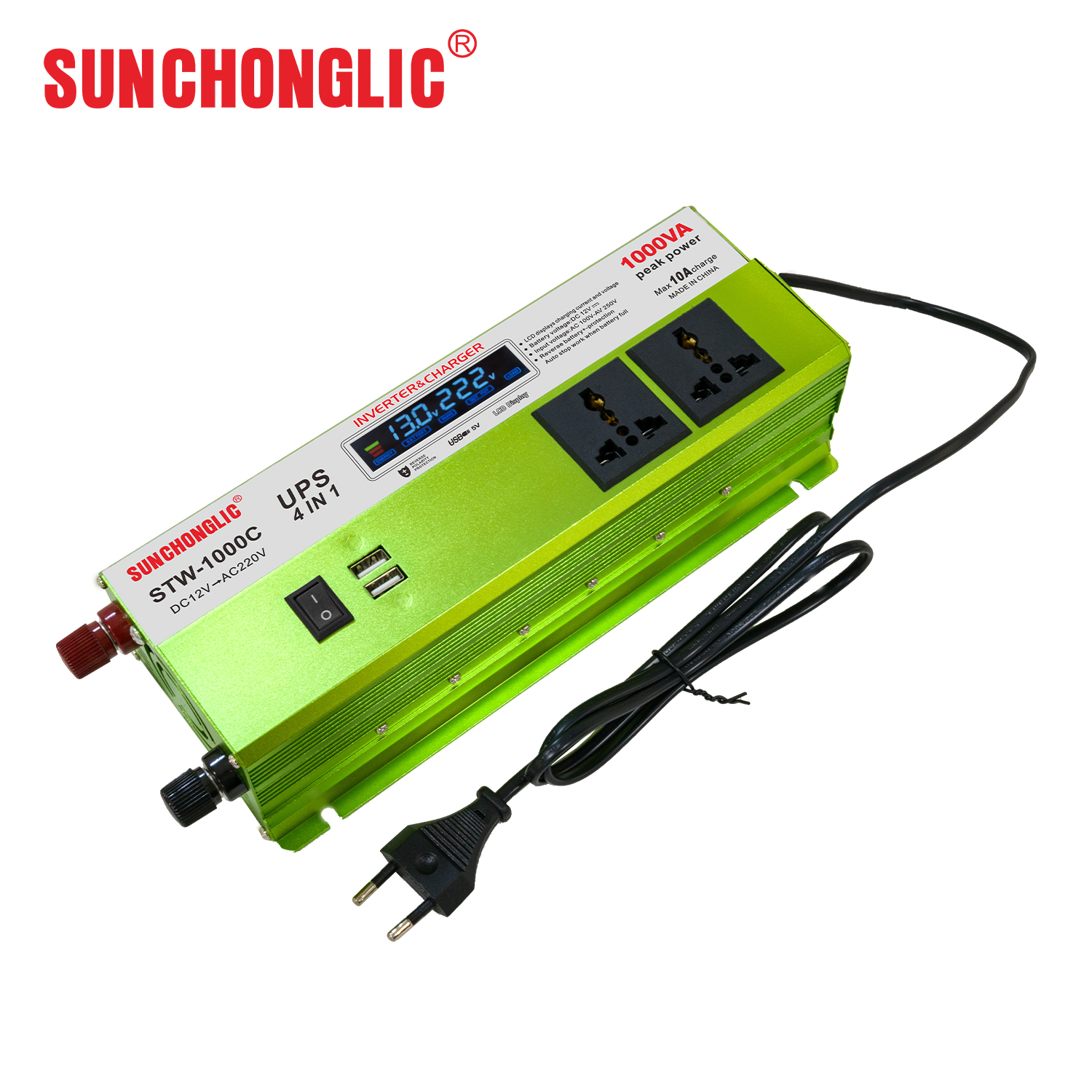

STW-1000C Compact 4 In 1 UPS Power Inverter With Built-in Charger
Product Overview
STW-1000C is a mini integrated power supply unit developed by our Sunchonglic factory in Foshan. It integrates four core functions: DC to AC power conversion, intelligent battery charging, mains power priority automatic switching and circuit protection. It adopts DC12V battery supply, adapts to AC 100V-250V wide-range mains voltage, which can fit the power grid standards of most developing countries. Its small size and light weight make it easy to place and install. When city electricity is available, it directly supplies power to electrical loads and charges the battery at the same time; once mains power is interrupted, it switches to battery inverter mode instantly, ensuring no power break for routers, lights and other essential devices.
Main Functional Advantages
1. Mains priority automatic transfer system
The device follows utility power first working mode. As long as city power is normal, it uses mains power to supply loads and charge storage batteries continuously. In case of sudden power outage, it switches to battery inversion mode immediately, no delay, which can avoid data loss and equipment damage caused by sudden power failure, very suitable for communication equipment and household daily appliances.
2. Intelligent floating charging system

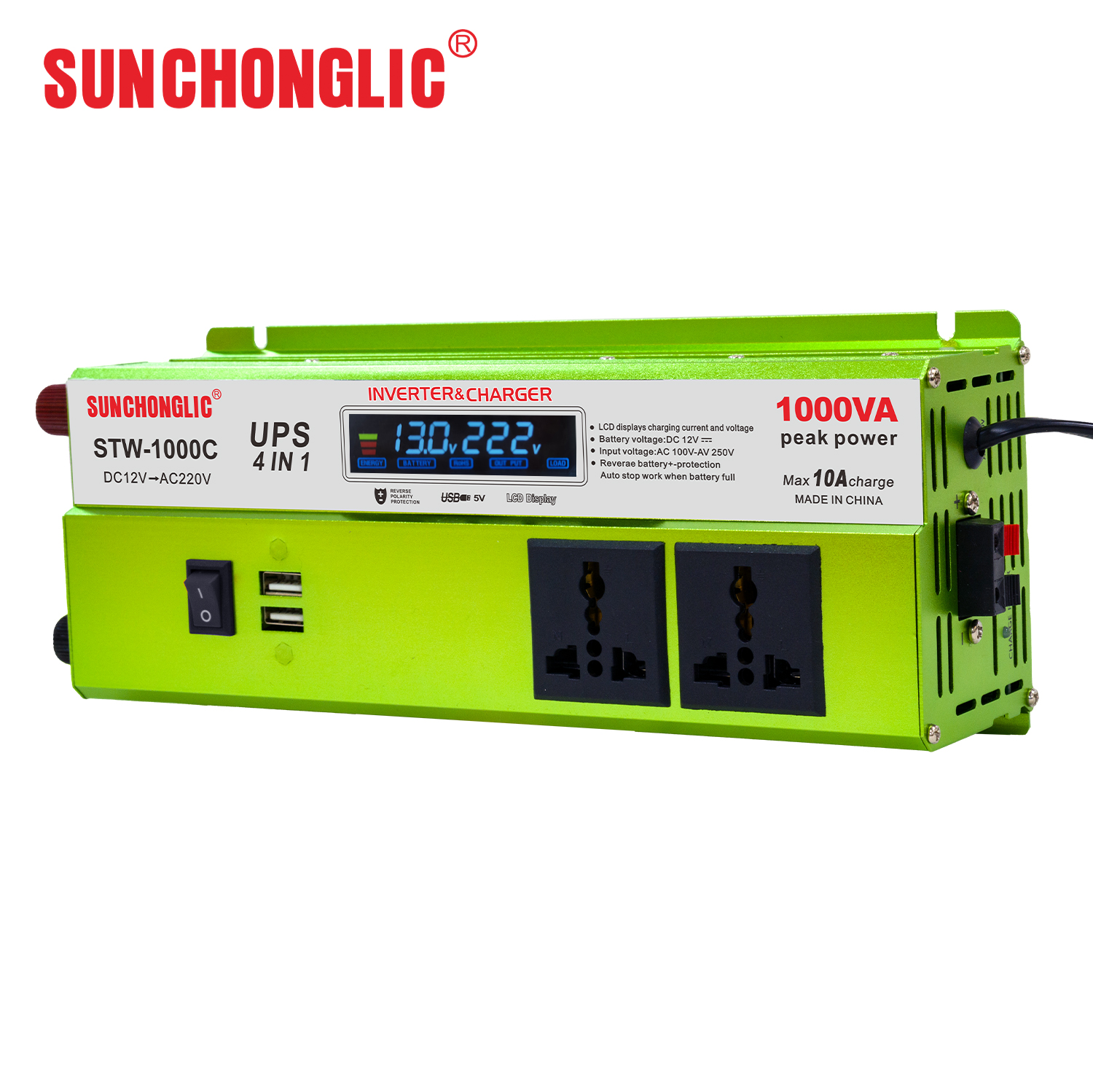

Adopts constant voltage floating charging mode, charging voltage range DC14V-14.9V, maximum charging current 9A-11A. The built-in LCD display shows real-time battery voltage and charging current clearly. It will stop charging automatically after the battery is fully charged, effectively prevent battery overcharging, extend the service life of lead-acid batteries greatly.
3. Multiple comprehensive safety protection functions
The main control chip monitors the whole working state in real time, including overvoltage protection, undervoltage battery protection, overload protection, charging circuit short-circuit protection and charging reverse connection protection. When abnormal conditions happen, the inverter will cut off output automatically to protect itself and connected electrical appliances.

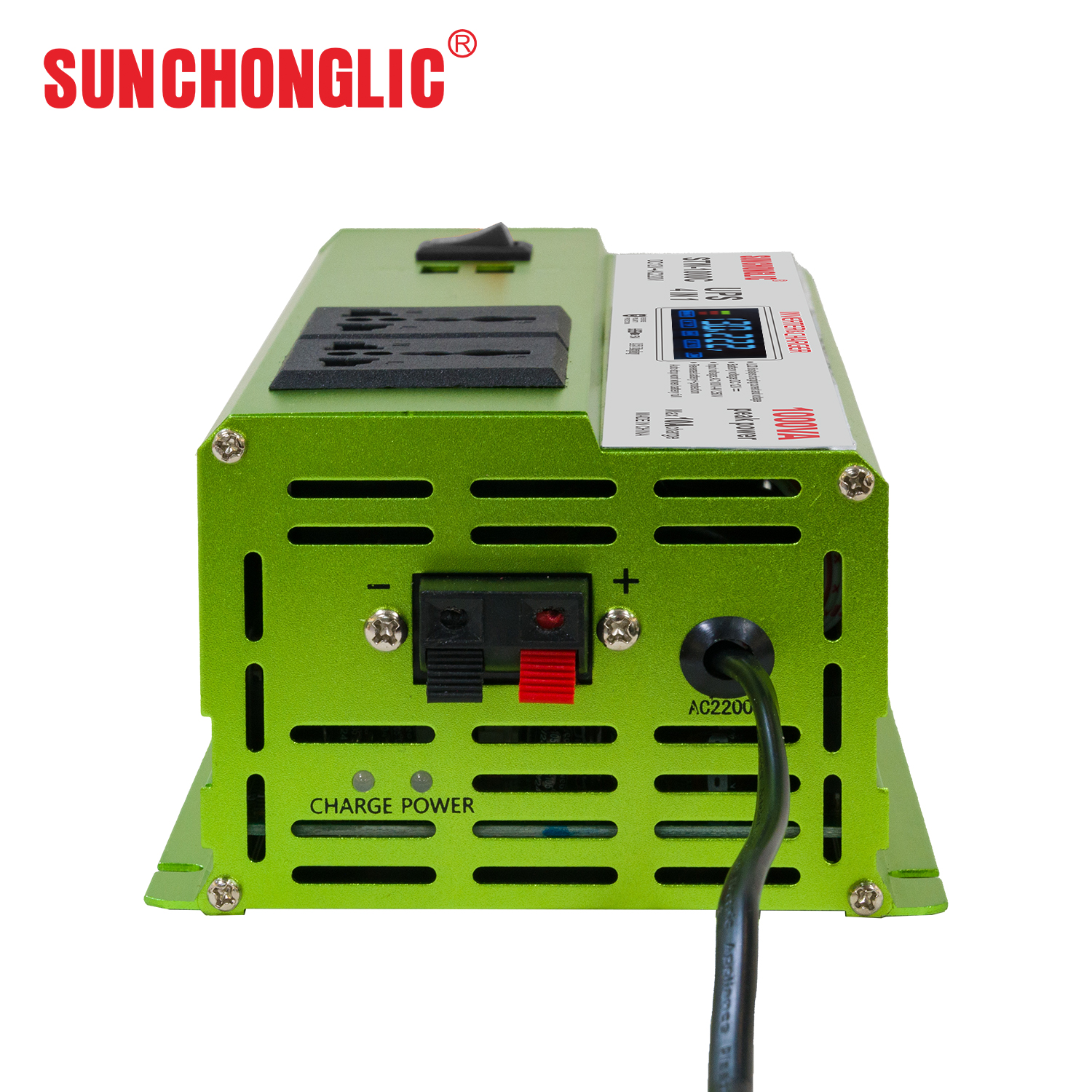

4. Portable and compact design
With small body size and light net weight, it occupies little space, can be placed on desktop or fixed on the wall freely. Equipped with universal AC sockets, it can supply power to multiple devices at the same time, meeting basic household power needs.
Complete Technical Parameters
Model: STW-1000C
Battery input voltage: DC 10.5V – 15V
Inverter no-load output voltage: AC220V-230V
Output frequency: 50Hz
Continuous full-load power: 500W
Peak power: 1000VA
Charging input voltage: AC 100V-250V
Float constant charging voltage: DC14V-14.9V
Maximum charging current: 9A-11A
UPS working mode: Mains power priority, instant switch to inverter when mains failure
Product dimensions: 24010075mm
Net weight: 0.9kg
Carton size: 445345350mm
Quantity per carton: 12 pieces
Gross weight per carton: 12.32kg
Application Scenarios
1. Household emergency power backup: Supply power for lighting, wireless router, small appliances during frequent power outages, perfect for areas with unstable power supply.
2. Small store power supply: Used in small shops to maintain the operation of cash register, lighting and communication equipment.

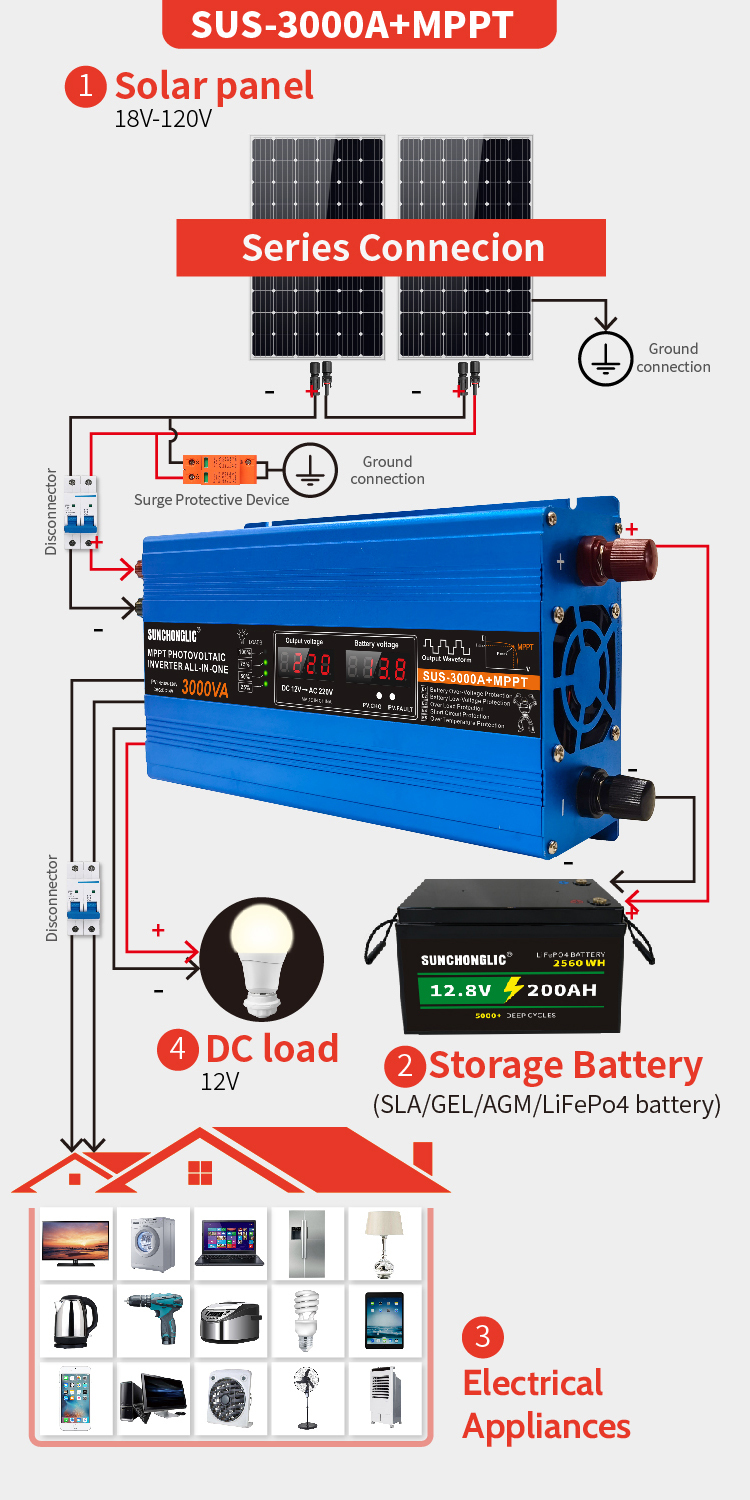

3. Mini off-grid solar system: Match small solar panels to build independent power supply for rural families and remote houses.
Factory Wholesale Information
Brand: Sunchonglic
Place of origin: Foshan, Guangdong, China
Production lead time: 40 days for bulk orders
