12V 220V 3000WInverter Charger Smart With Overload Protection
Delivering 3000W of power, this modified sine wave inverter charger converts 12V DC to 220V AC. It is equipped with comprehensive safeguards and smart charging for reliable residential power, while its built-in UPS function ensures seamless operation during grid failures.
Features
• Modified sinewaveform output.
• Inverter conversion efficiency up to 84%.
• Output smartly controlled by temperature,Thus regulating the real-time power of electrical appliances
• Intelligent control of heat dissipation: temperature control, loading control.
• Multiple safety protections: battery under-voltage sound alarm/under-voltage output shutdown/over-voltage output shutdown/overload output shutdown/high temperature output shutdown.
• Built-in battery AC charger and USB charging interface.
• UPS (uninterruptible power supply) function: when the mains voltage is between 170-250V, the machine charges the battery and outputs mains for loads; when there is a sudden power outage or the mains power is lower than 170V or higher than 250V,The UPS automatically switches the inverter output for loads from mains without disturbing your work and entertainment.
Technical Parameter
| Model | FU-3000C | |||
| External battery | 12V 50AH~150AH | |||
| AC input | Voltage | AC 110~230V | ||
| Frequency | 50Hz±10% | |||
| DC input | Voltage | DC12V | ||
| Low voltage protection | DC10V | |||
| Over voltage protection | DC16V | |||
| AC Output | Voltage | AC 230V | ||
| Output power | 3000VA | |||
| Frequency | 50±0.5Hz | |||
| Waveform | Modified sine wave | |||
| Efficiency | ≥85% | |||
| Charging | Charge current | 20A | ||
| Charge efficiency | 90% | |||
| Protection | Input reverse polarity/Undervoltage/Overload/Input over-voltage/Short circuit/Over-temperature protection | |||
| UPS Switch Time | 10ms | |||
| Environment | Noise | ≤45db | ||
| Temperature | 0℃±40℃ | |||
| Humidity | 10%±90% | |||
| Dimensions | 335*440*350mm/ctn | |||
| Weight | 14kg/ctn | |||
Product Details Image

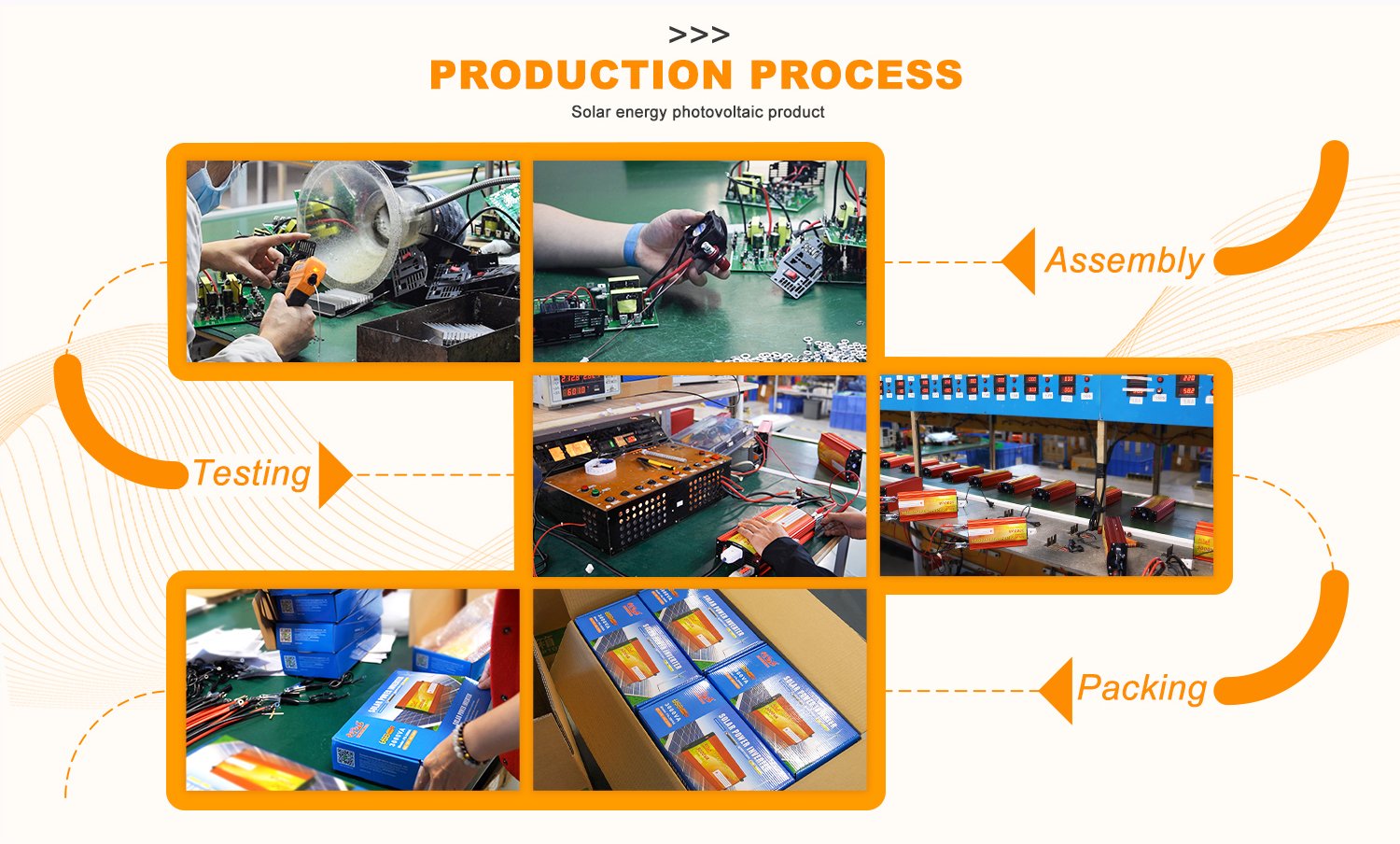

Our Manufacturing Expertise
As a seasoned manufacturer with over 20 years of experience, we specialize in producing a comprehensive range of solar photovoltaic products including solar inverters, AGM/GEL lead-acid battery chargers, and solar charge controllers. Our Sunchonglic products are renowned for their high performance, reliability, and cost-effectiveness.
Our product line includes pure sine wave inverters, UPS chargers, voltage stabilizers, and both PWM and MPPT solar charge controllers. Backed by advanced testing facilities and a strong R&D team, we continuously optimize our products to meet diverse industry requirements.
