Product Features
• Leakage current lower than 90 microamperes
• Fully isolated input and output
• Broad range of applications: Suitable for vehicles, yachts, home appliances, office equipment, and portable devices
• Energy efficiency rating greater than 85%
• Complete built-in protections: Input under/overvoltage, overload, overheat, and short circuit protection
• Intelligent cooling fan: Runs at high speed when output exceeds 100W or internal temperature rises above 50℃; operates at low speed under normal condition
Technical Specifications
| Model | FPC-800A |
| DC Input | |
| Working Voltage | 12VDC |
| No-load Current | ＜0.8A |
| Voltage range | 10.5-15V |
| Alarm voltage | 10.5V |
| Low-voltage protection | 10V |
| Over-voltage protection | 10.5V |
| Battery Type | Lead-acid Battery |
| AC Output | |
| Rated Power | 800W |
| AC Voltage | 220VAC |
| Frequency | 50Hz |
| Waveform | Pure Sine Wave |
| USB output | 5V/2.5A |
| Effciency maximum | ＞85% |
| Product size | 260*105*70mm |
| Weight | 1.06kg |
ATTENTION

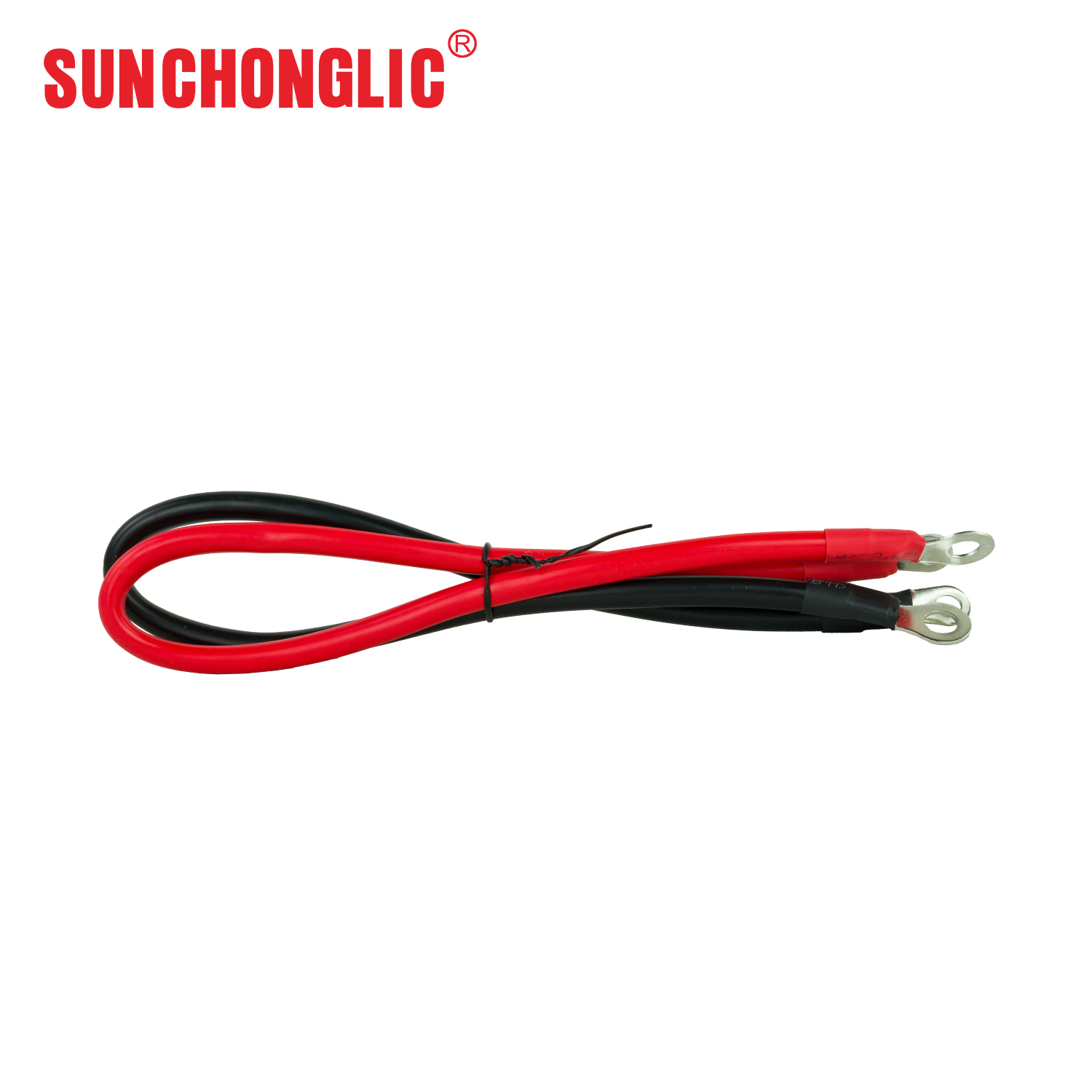

1. In connection cable should be used to install the appropriate cable, if the 230V output cable is too long or the wire cross-sectional area is too small, will generate a large number of cable power loss, the load performance as low power, low voltage.
2. Battery and inverter connection cable are not standardized, cable is too long, cross-sectional area is too small, to connect parts of contact short, and even turn on does not work give a alarm. Meanwhile, cable must have waterproof, insulate strength to meet environment
requires.
Applied to the following product:Bulb,fluorescent light, Rice cooker, electric iron, desktops computer,laptops,graphoscope,fax machines, printers, LCD TV, TV, fans, DVD machine, cell phone chargers, electric drill,electric iron , washing machine, hair dryer,amplifier,music center,subwoofer and so on.
Our Factory
Sunchonglic, established in 2015, is a professional solar photovoltaic manufacturer with 6,600+㎡ production facilities and a 10,000+㎡ logistics center in Foshan, China. Specializing in comprehensive energy solutions, we produce inverters (including pure sine wave and hybrid low-frequency models), solar charge controllers, AGM/GEL battery chargers, and UPS systems. Supported by advanced R&D capabilities and extensive European distribution networks, we deliver cost-effective products with rapid response services for residential and commercial applications. Contact us for technical specifications or customized project support!
Environment for use
In order to get the best using results, please put the inverter on the flat surface , such as the ground, car floor, or other solid surface which can easily fixed the inverter's power cord . The working place should meet the following criteria:
| For example: an AC load power is 100W, the power supply must provide a current of 100/10 = 10A.If you need larger current, you can use a few batteries in parallel. The most important is toensure that there is sufficient cross-sectional area of the connecting cable. This manual can notlist all of the battery combinations. Battery charging and battery configuration are other areas of expertise |
Product Frequently Asked Questions
| Power tools andmicrowave ovenscan not start | Read the parameter of the high-power equipment carefully and make sure the inputpower and output power that if it has enough power to run the equipment and themicrowave ovens, please remember that the electro tools may needs 2 to 6 times power. |
| Television interference | The inverter just has little interference to the TV signal. But in some case, it will has interference,special when the TV signal is poor. 2.Adjust the placed direction of the inverter. 4.When you watch TV, do not run the high power electrical equipment or tools. |
