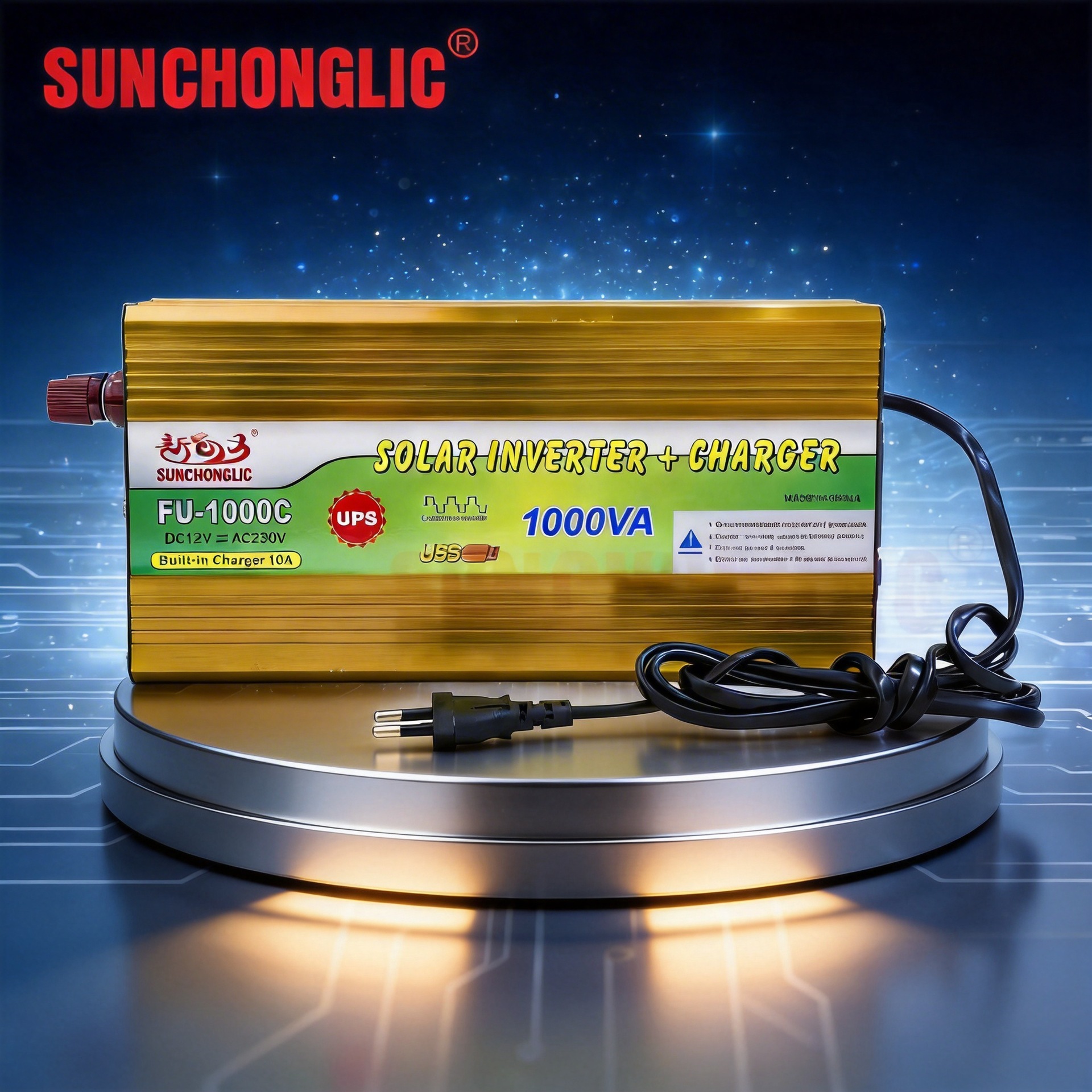

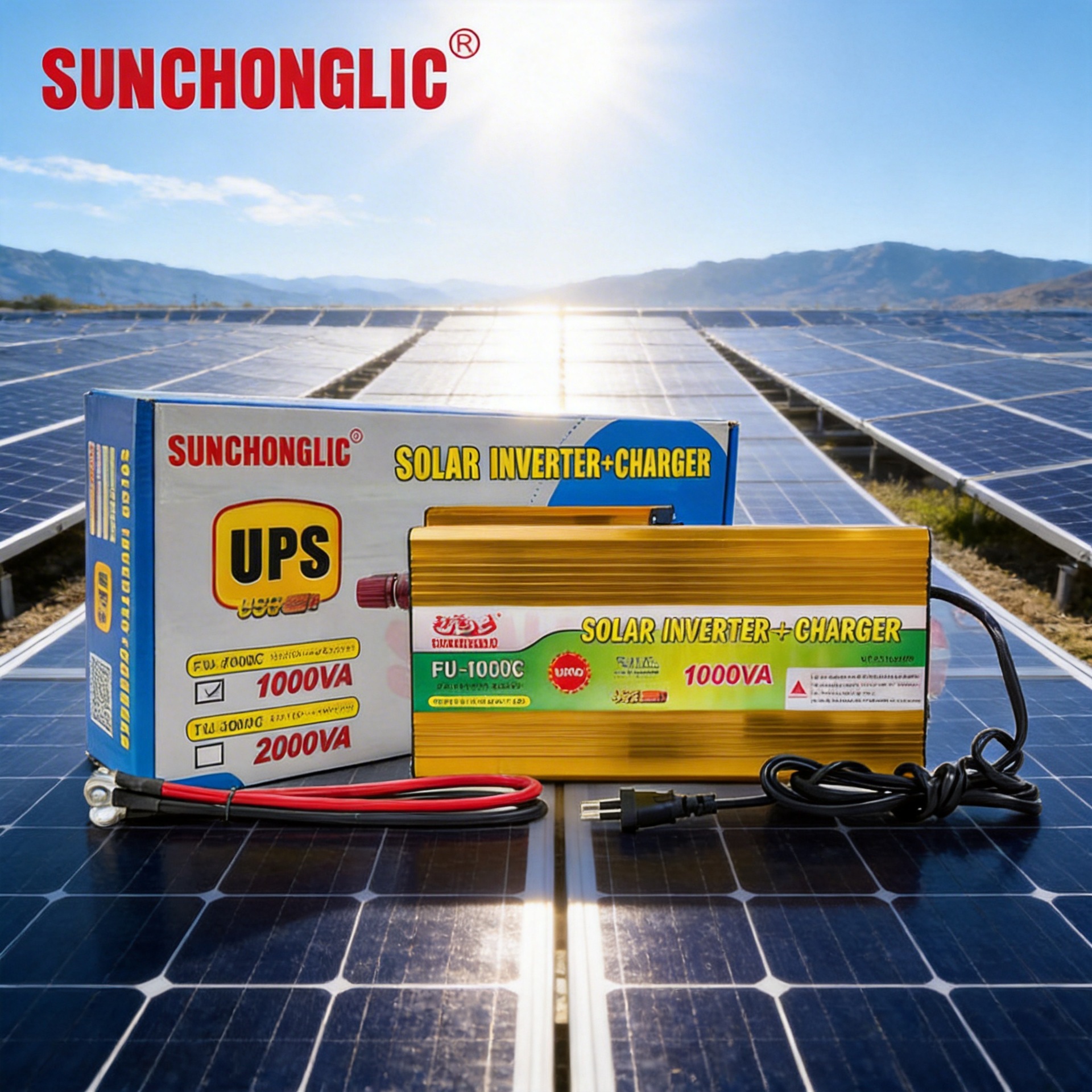

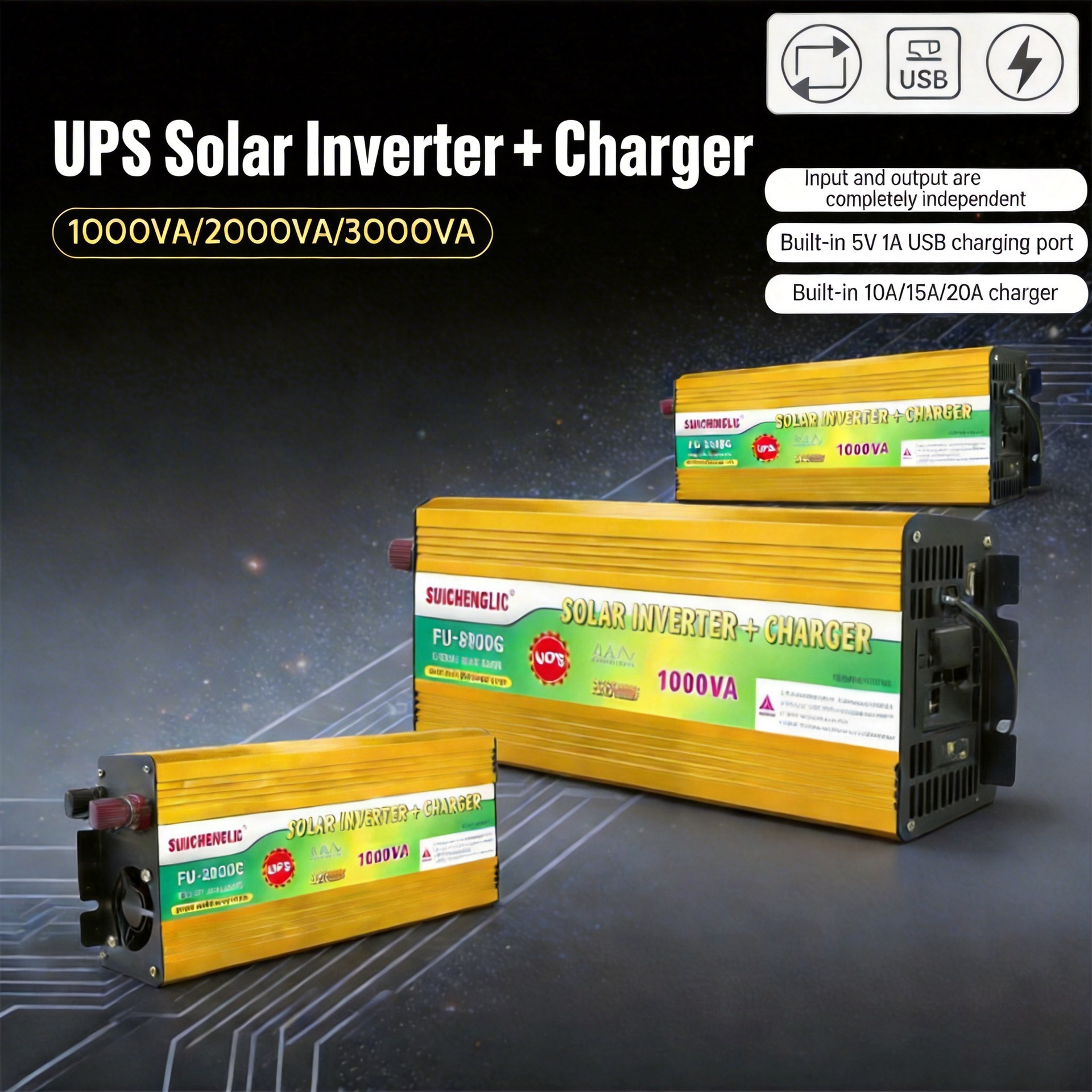

1000VA UPS Charger Inverter - Modified Sine Wave Solar UPS Inverter with AC Charger 12V 220V
This 1000W modified sine wave solar power UPS inverter, featuring an in-built AC charger, gives you reliable backup power for home as well as commercial applications.
Features

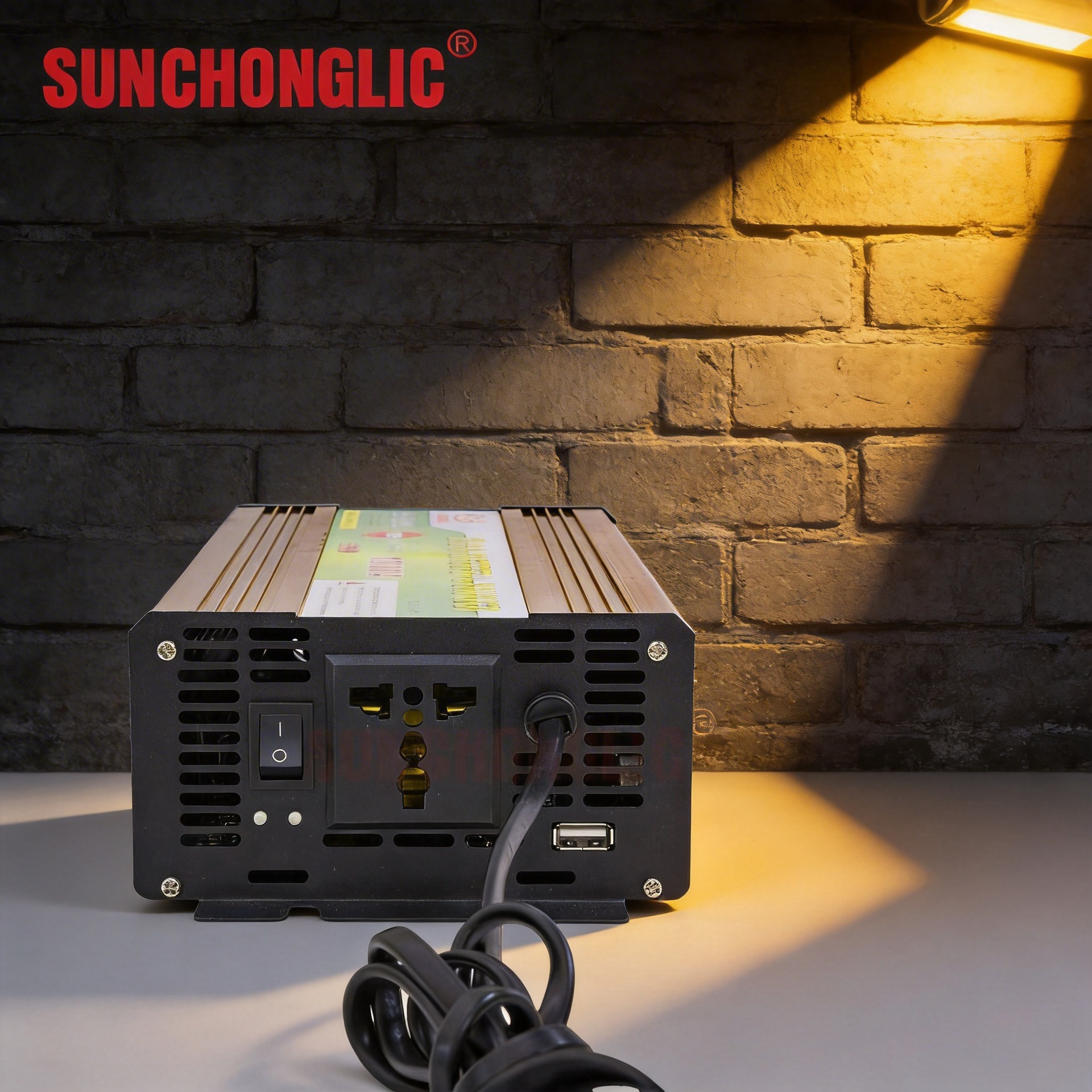

· Includes a 5V 1A USB port for convenient charging of devices
· Smart, lightweight, and portable design makes it ideal for home use
· Inverter and charger operate independently without interfering with each other
· Equipped with a built‑in 10A charger to effectively charge batteries
· Features completely separate input and output circuits
· Compatible with resistive loads for a wide range of applications
Applications:

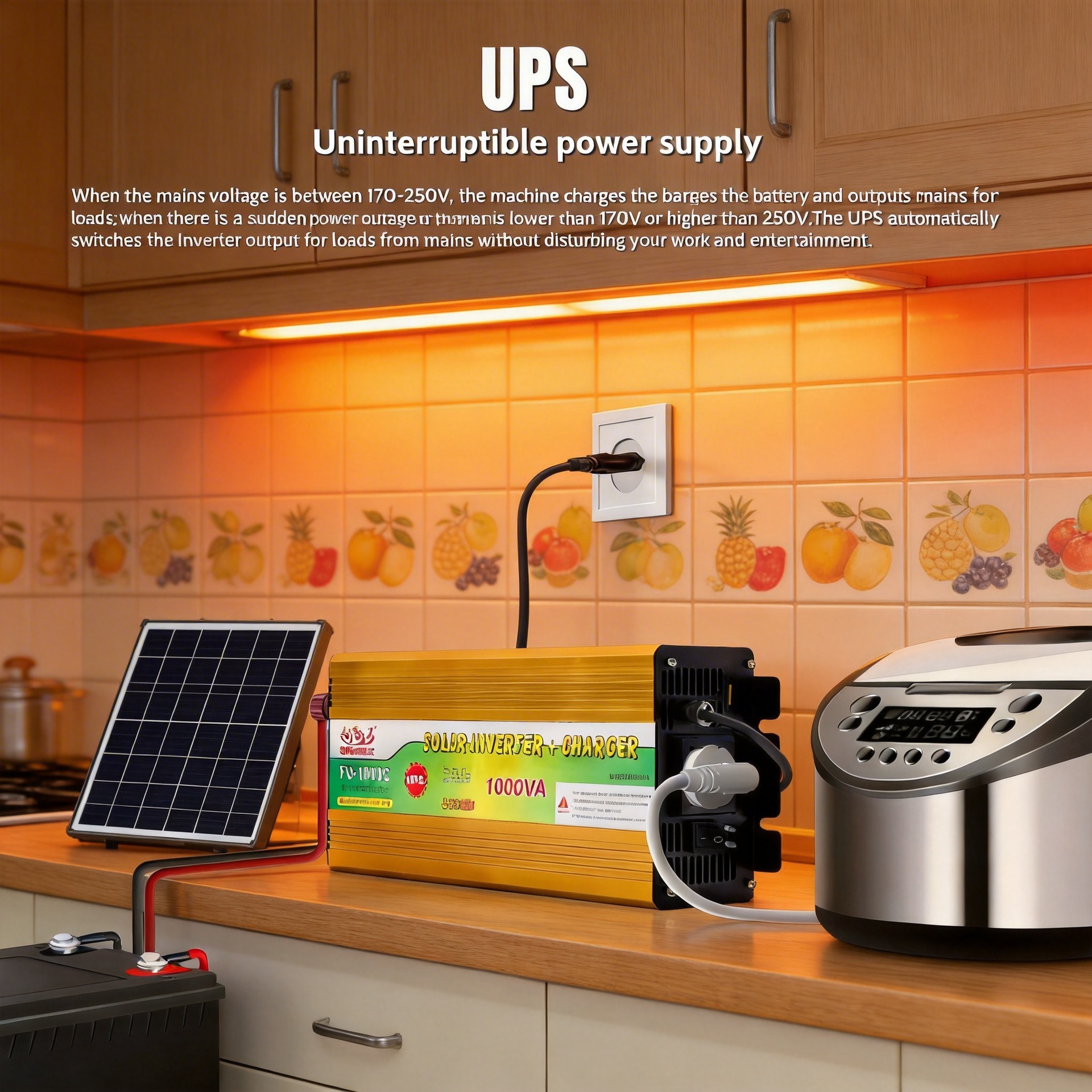

This inverter is especially well‑suited for powering household appliances, office equipment, and power tools in areas where power outages are common or where the grid voltage fluctuates. It is also particularly appropriate for appliances that cannot handle sudden power interruptions. When using any appliance, its rated power must be less than the inverter's actual maximum output power. Additionally, for inductive loads such as power tools and other motor‑driven appliances, be aware that the starting peak power is typically 3 to 8 times the appliance's rated power.
Technical Parameter
| Model | FU-1000C | |||
| External battery | 12V 50AH~150AH | |||
| AC input | Voltage | AC 110~230V | ||
| Frequency | 50Hz±10% | |||
| DC input | Voltage | DC12V | ||
| Low voltage protection | DC10V | |||
| Over voltage protection | DC16V | |||
| AC Output | Voltage | AC 230V | ||
| Output power | 1000VA | |||
| Frequency | 50±0.5Hz | |||
| Waveform | Modified sine wave | |||
| Efficiency | ≥85% | |||
| Charging | Charge current | 10A | ||
| Charge efficiency | 90% | |||
| Protection | Input reverse polarity/Undervoltage/Overload/Input over-voltage/Short circuit/Over-temperature protection | |||
| UPS Switch Time | 10ms | |||
| Environment | Noise | ≤45db | ||
| Temperature | 0℃±40℃ | |||
| Humidity | 10%±90% | |||
| Dimensions | 335*440*350mm/ctn | |||
| Weight | 14kg/ctn | |||

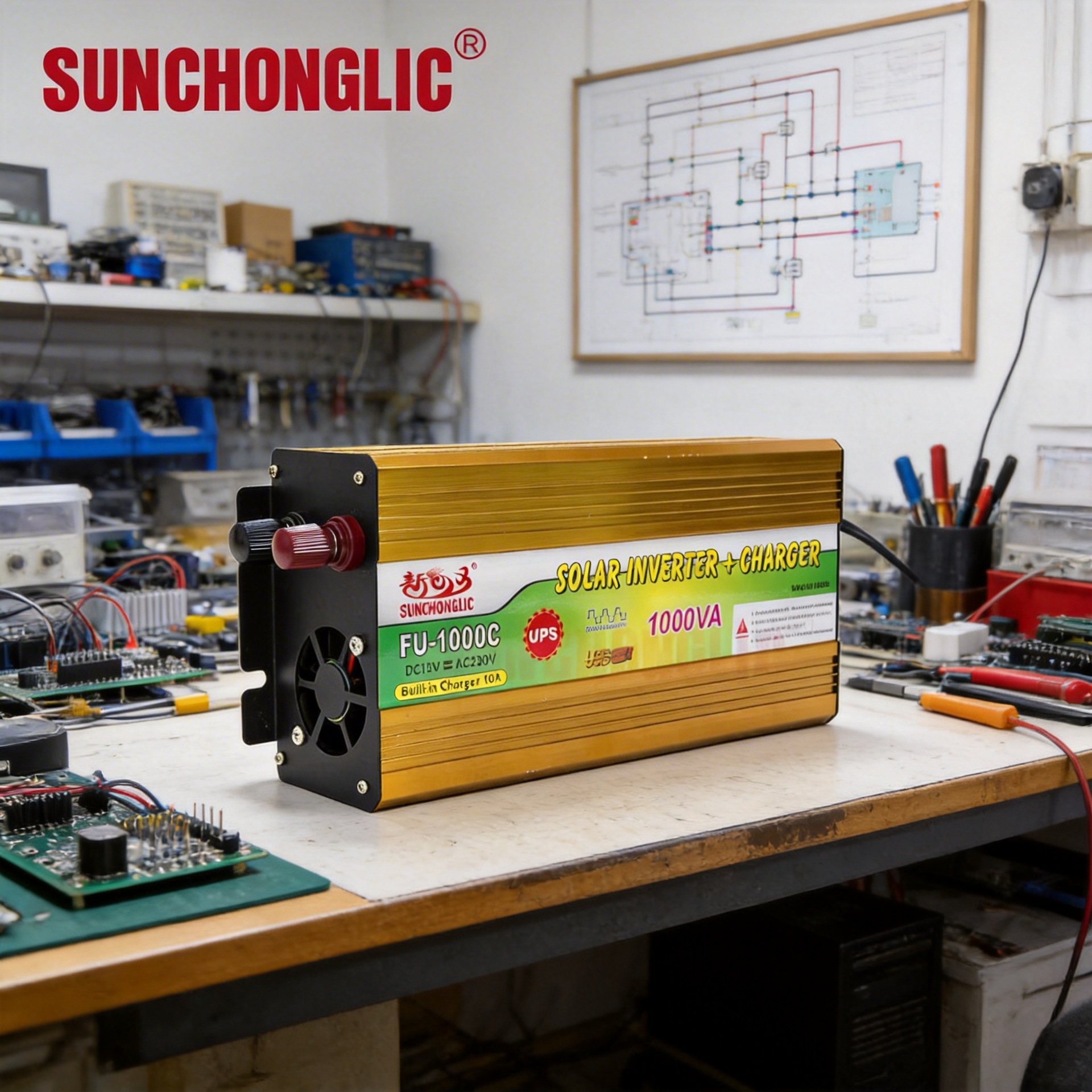

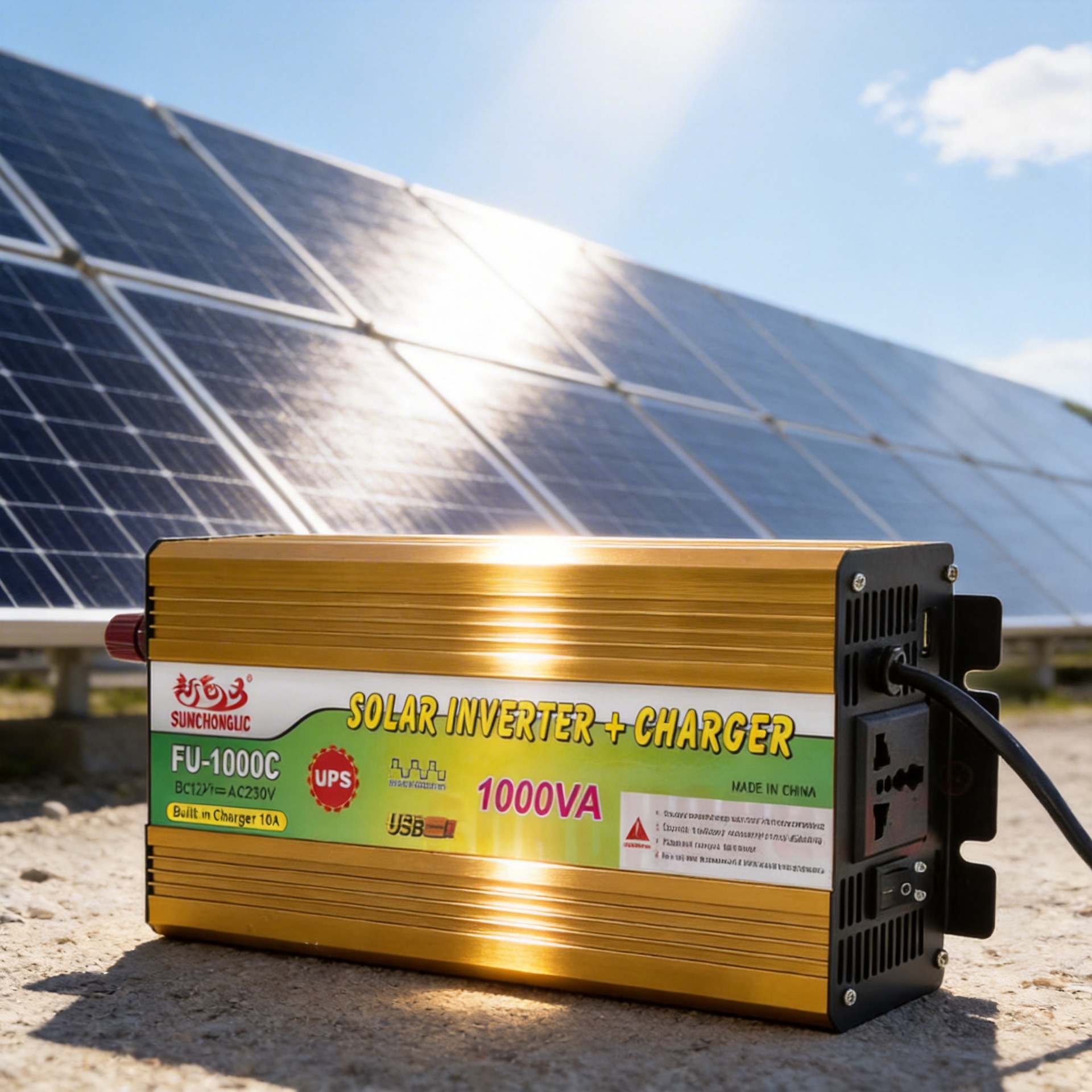

Product Details Image
Installation Precautions
· A common guideline for inverter selection: the inverter's continuous output power should be about 20% greater than the appliance's rated power.
· Prior to installation, ensure that the lead-acid battery's rated voltage (12V or 24V) is consistent with the inverter's rated input voltage.
· Install the inverter in a space that is well-ventilated, dry, moisture-free, and dust-free, and keep it away from flammable and explosive substances.

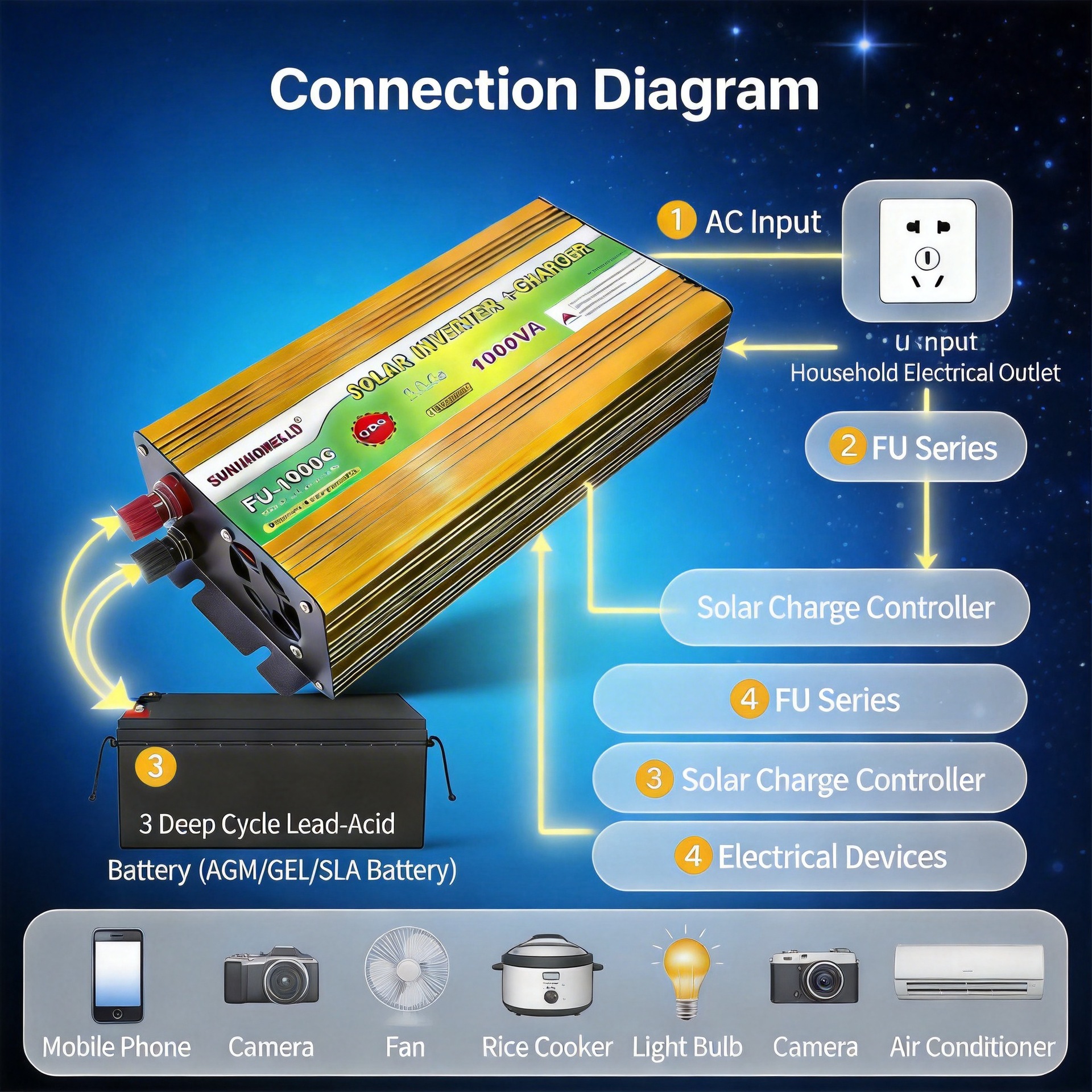

Installation Procedure
· First, switch off the inverter.

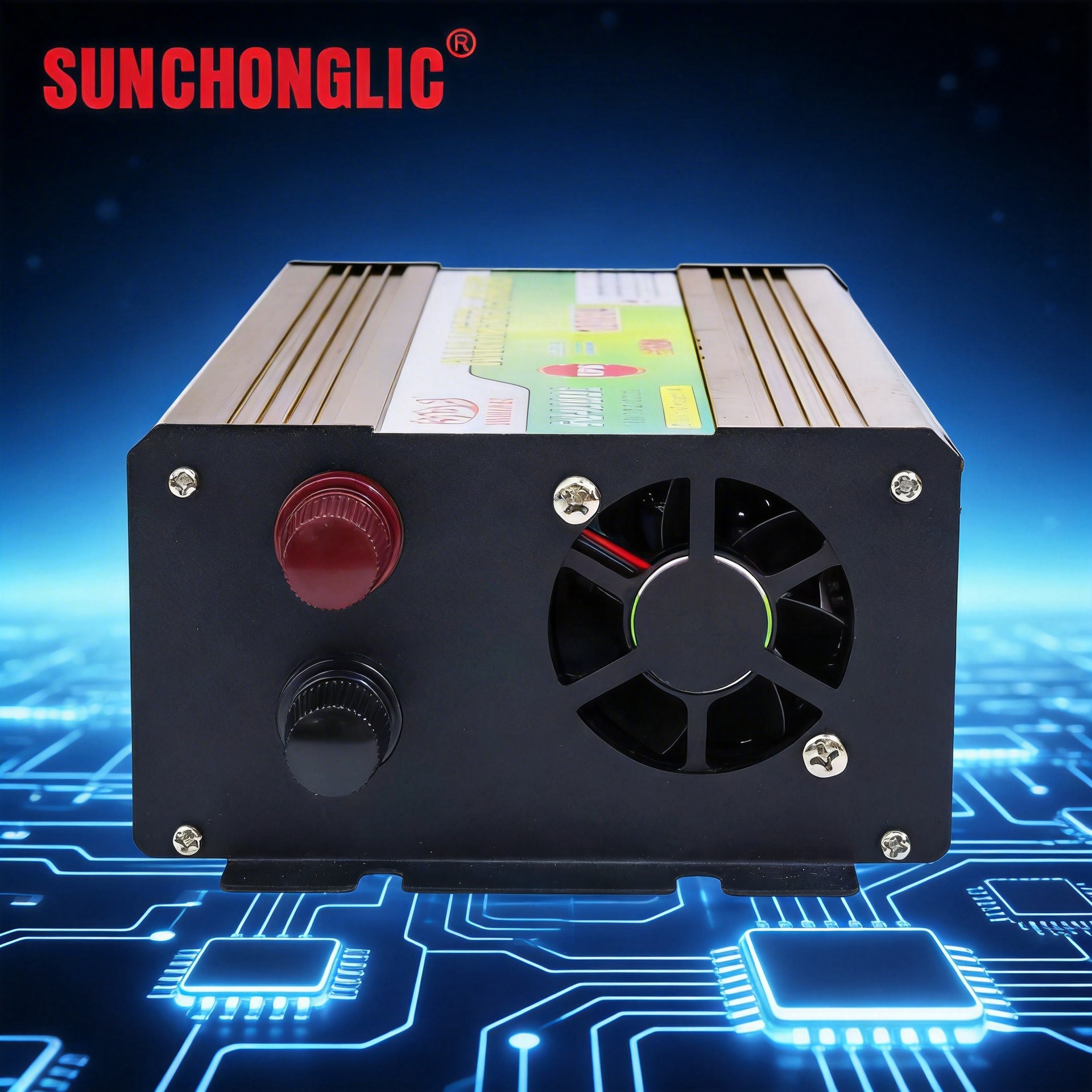

· Using a black DC cable (the included accessory or a larger gauge wire), connect the battery's negative pole to the inverter's black terminal. Tighten the nut to make sure the connection is secure and reliable.
· Using a red DC cable (supplied or larger), connect the battery's positive pole to the inverter's red terminal. Tighten the nut to ensure a tight, reliable connection.
· Plug the electrical appliance's AC power plug into the inverter's output socket.
· Insert the inverter's own AC power cord plug into a 220V mains socket.
· Finally, turn on the inverter switch.
