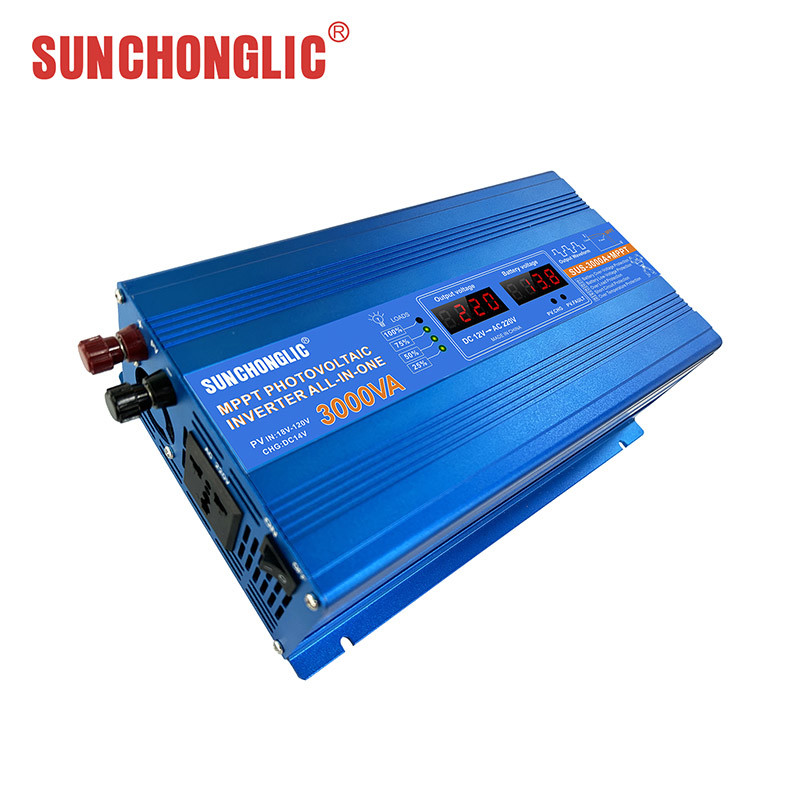

MPPT Solar Photovoltaic Inverter 12v to 220v Dc Ac 3000va 3000w Modified Sine Wave Power Inverter
What is feature of MPPT solar shotovoltaic inverter12v to 220v dc ac 3000va 3000w modified sine wave power inverter ?
1, This series is to control the inverter machine, the external battery is more convenient, flexible according to the needs of customers
2, This series of system cover home system 100W to 1000W power, is the preferred choice of high lift configuration system
3, AC output: 220V can take the computer, TV, fan etc
4, DC output: 12V(24V), 5V, LED lamp with a camera, mobile phone charging
5.Big LED display screen
6.Modified sine waveform output 12V 1000VA/1500VA
>>>Product Specifications
| Model | SUS-3000A+MPPT |
| The built-in controller | 25A~30A |
| Featured solar panel specifications | 100~200W/36V∗2 |
| External battery | 12V 100Ah~150Ah |
| Output voltage of the inverter | AC 220V±5% |
| Maximum continuous power | 1500W |
| Peak power | 4000 |
| No losd current | <0.5A |
| DC input voltage | DC9.7V~15.5V |
| Output frequency | 50Hz±3Hz |
| Conversion efficiency | >90% |
| High pressure cut off | 15V±0.5V |
| Low voltage alarm | 11.2V±0.3V |
| Low cut | 10V±0.3V |
| Overload,short circuit protection | There wave |
| Output waveform | Tixed wave |
| Cooling mode | Fan cooled |
| Working environment temperature | -20℃~+70℃ |
| Relative humidity | <90%RH |
| Overall dimensions | 230x127x67mm |
| The weight of the inverter | 1.5kg |
