What is feature of 10 amp manual pulse width modulation solar charger controller with lcd display 24 volt ?
Equipped with a dedicated USB power delivery port supporting 1.5-volt output at 2-ampere current.
Compatible with three distinct battery chemistries: B01 Lead-acid, B02 Lithium-ion (Li-ion), and B03 Lithium Iron Phosphate (LiFePO4) cells.

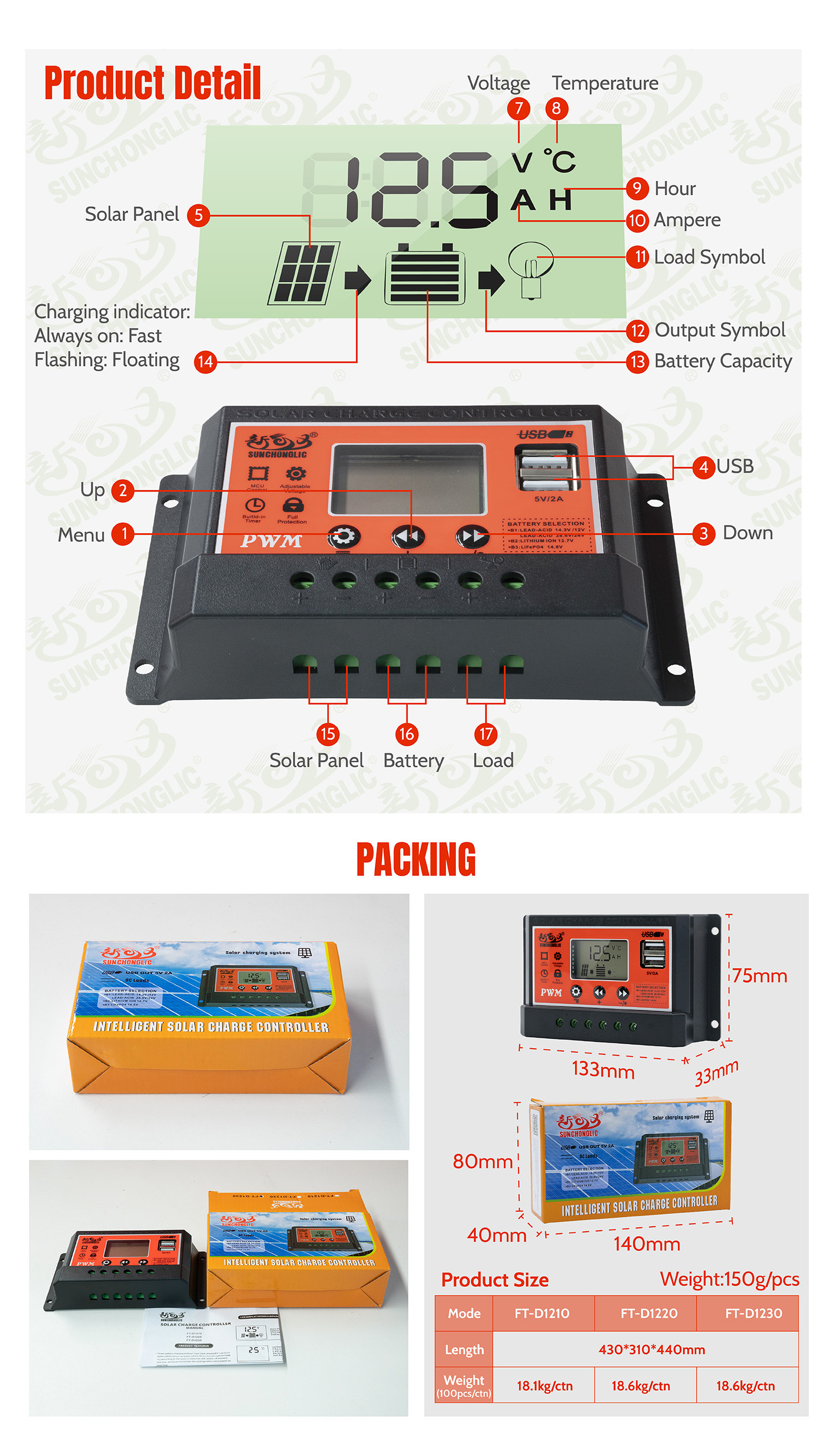

Features an easy-to-read, spacious LCD screen for clear information presentation.
Utilizes a sophisticated three-stage PWM charging algorithm comprising Bulk (Constant Current), Absorption (Constant Voltage), and Float (Maintenance) phases to optimize battery replenishment.
Incorporates comprehensive safeguards: Defenses against Overcurrent, Short Circuit, Open Circuit, and Reverse Polarity conditions for enhanced operational security.
Includes an automatic settings retention feature. In the event of a power interruption, this function preserves the user's most recent configuration automatically for seamless resumption.
>>>Product Specifications
| Model | FT-D1230 |
| Rated current | 30A |
| System Voltage | 12V/24V system is only designed for lead-acid batteries with auto sense function |
| Solar PV input maximum voltage | 12V system<25V; 24V system<50V |
| Battery Type | B01=Lead Acid Battery 12V/24V auto sense |
| B02=Lithium-ion battery 3 series 3.7V=11.1V | |
| B03=Lithium-ion phosphate battery 4 series 3.2V=12.8V | |
| Charging voltage | Default14.6V(B3) adjustable range 13.7-14.6V |
| Low-voltage cut off voltage | Default10V(B3) adjustable range 8-11.5V |
| Low power recovery voltage | Default12V(B3) adjustable range 11-13V |
| External 12V battery recommended solar panel specifications | 200-350W/18V |
| External 24V battery recommended solar panel specifications | 400-500W/36V |
| Battery capacity recommended | 12V/100-200Ah |
| 24V/100-200Ah | |
| Rated current of DC load output | 12A |
| USB Output | 5V/2A |
| Standby current | <10mA |
| Working temperatue | -35℃~+60℃ |
| Size / Weight | 133x75x33mm/152g |
| Mark:* tagged voltage only corresponds to 12V solar system,if user use 24V system,please multiply by 2 | |
