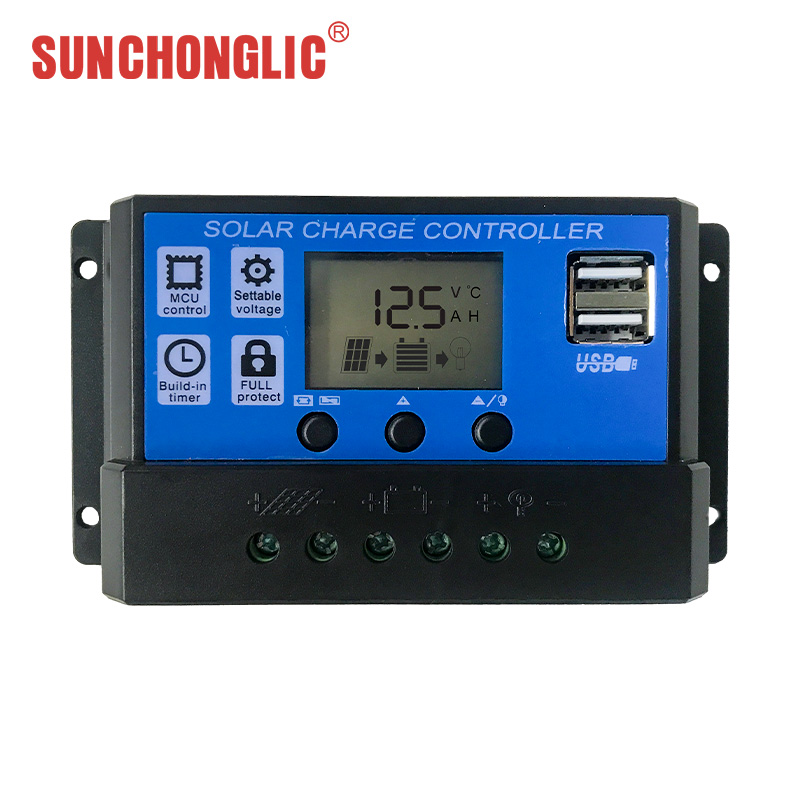

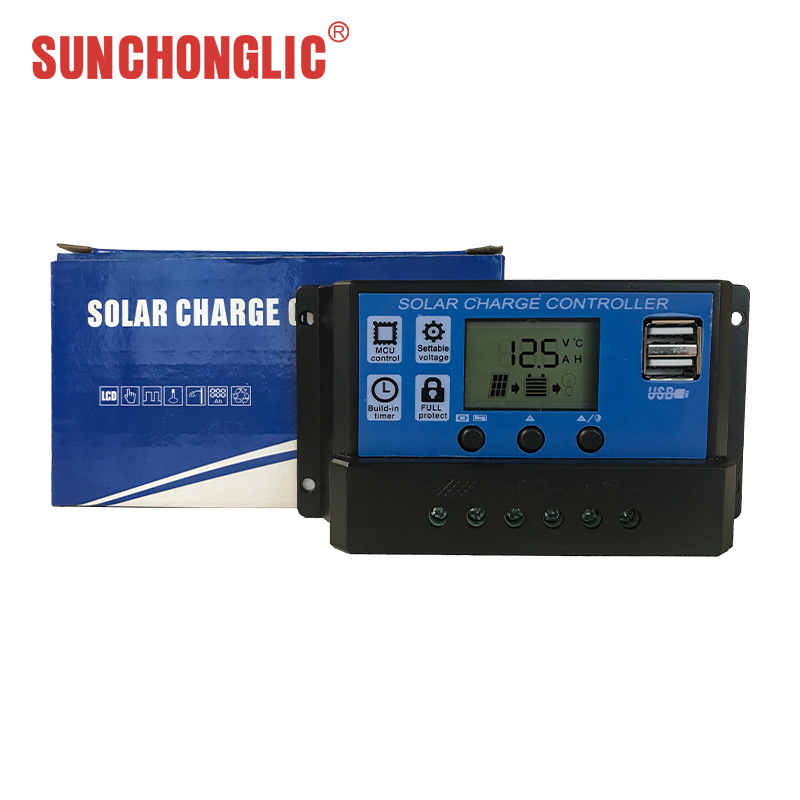

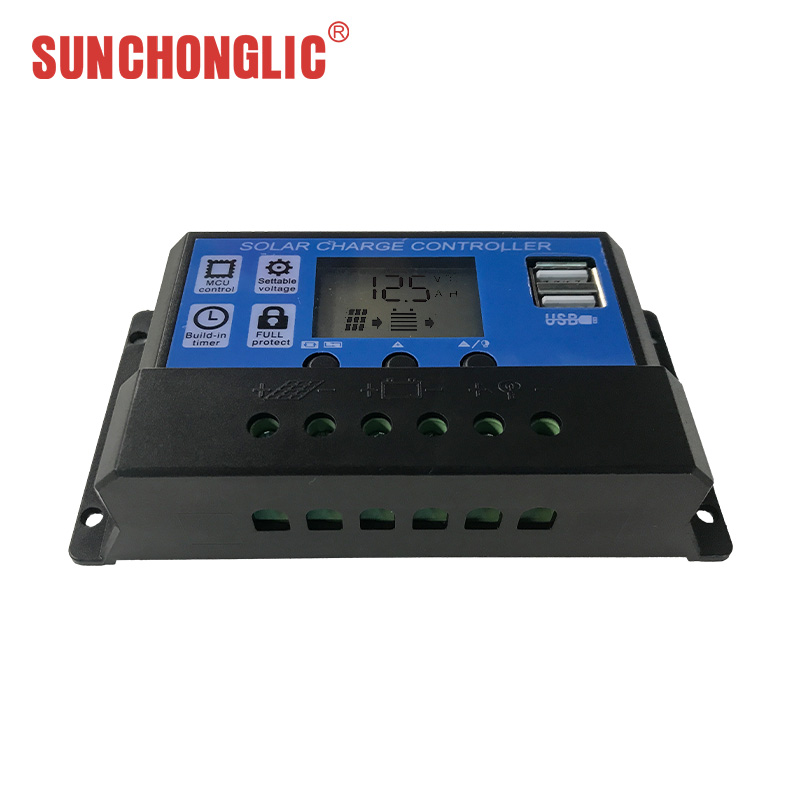

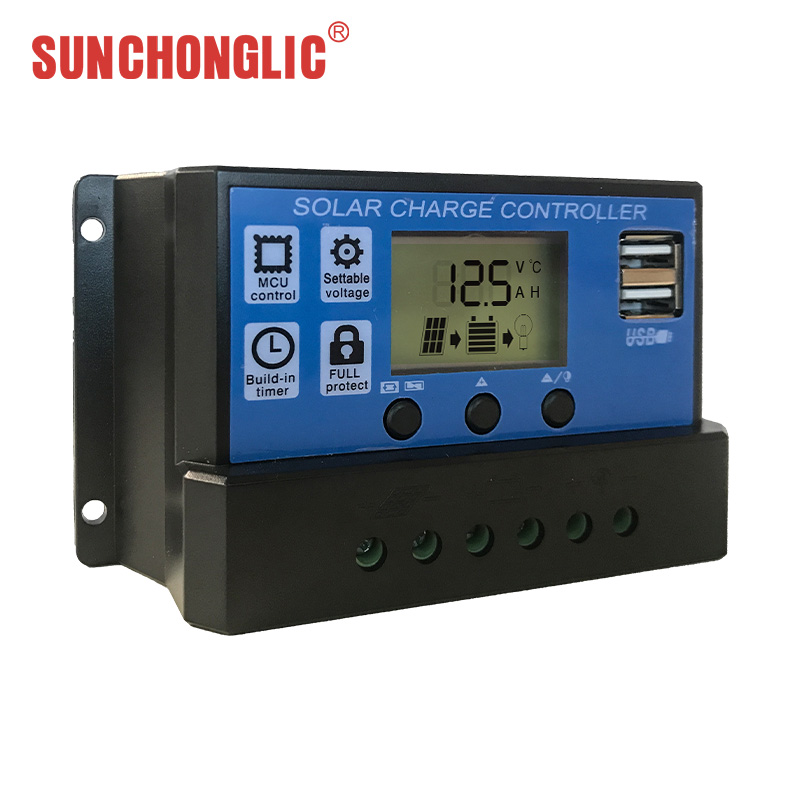

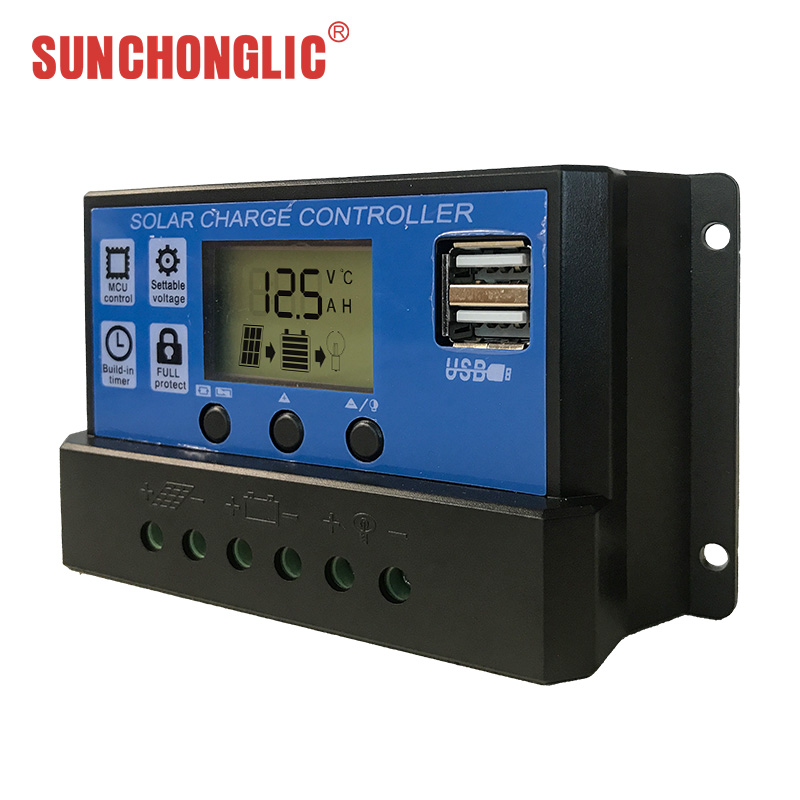

What is feature of 12v / 24v pwm solar charger controllers 5v / 2a usb output ?
1. Applicable for 3 types of batteries: B01 Lead-acid battery, B02 Lithium-ion battery, B03 Lithium iron phosphate battery
2. The power-cut memory function can automatically retain users' last settings
3. Equipped with a large-screen LCD display
4. Features a complete three-phase PWM charge management system (Constant current mode, Constant voltage mode, Floating charge mode)
5. Includes multiple protections: Overcurrent protection, Short circuit protection, Open circuit protection, and Battery reverse protection
6. Utilizes a double MOS tube anti-reverse circuit protection to prevent battery current from flowing back to the solar cell at night, thus avoiding power loss
>>>Product Specifications
| Model | FT-1220 |
| System Voltage | 12V/24V |
| Maximum input voltage | <50V |
| Rated current | 20A |
| External 12V battery recommended solar panel specifications | 200-300W/18V |
| External 24V battery recommended solar panel specifications | 200-300W/36V |
| External battery | 12V 100-150Ah |
| 24V 100-150Ah | |
| Battery Type | B01=Lead Acid Battery 12V |
| B02=Lithium-ion battery 3 series 3.7V=11.1V | |
| B03=Lithium-ion phosphate battery 4 series 3.2V=12.8V | |
| Charging voltage | 12.6V(B02) |
| Low-voltage cut off voltage | 9V(B02) |
| Low power recovery voltage | 10.5V(B02) |
| USB Output | 5V/2A |
| Standby current | <10mA |
| Working temperatue | -35℃~+60℃ |
| Size / Weight | 125*86*34mm/200g |
We are a professional manufacturer of solar photovoltaic products, including inverters, AGM/GEL battery chargers, and solar charge controllers. Our Sunchonglic brand is known for high performance, reliability, and cost-effectiveness. We offer a full range of products like pure sine wave inverters, UPS chargers, voltage stabilizers, and both PWM and MPPT solar charge controllers. With strong R&D and testing, we continuously improve our products to meet diverse industry needs. We provide customized solutions and offer full after-sales support. Our products are widely used in the Middle East, Southeast Asia, Africa, and South America.
For more information or technical support, please contact us—we're committed to delivering the best service!
