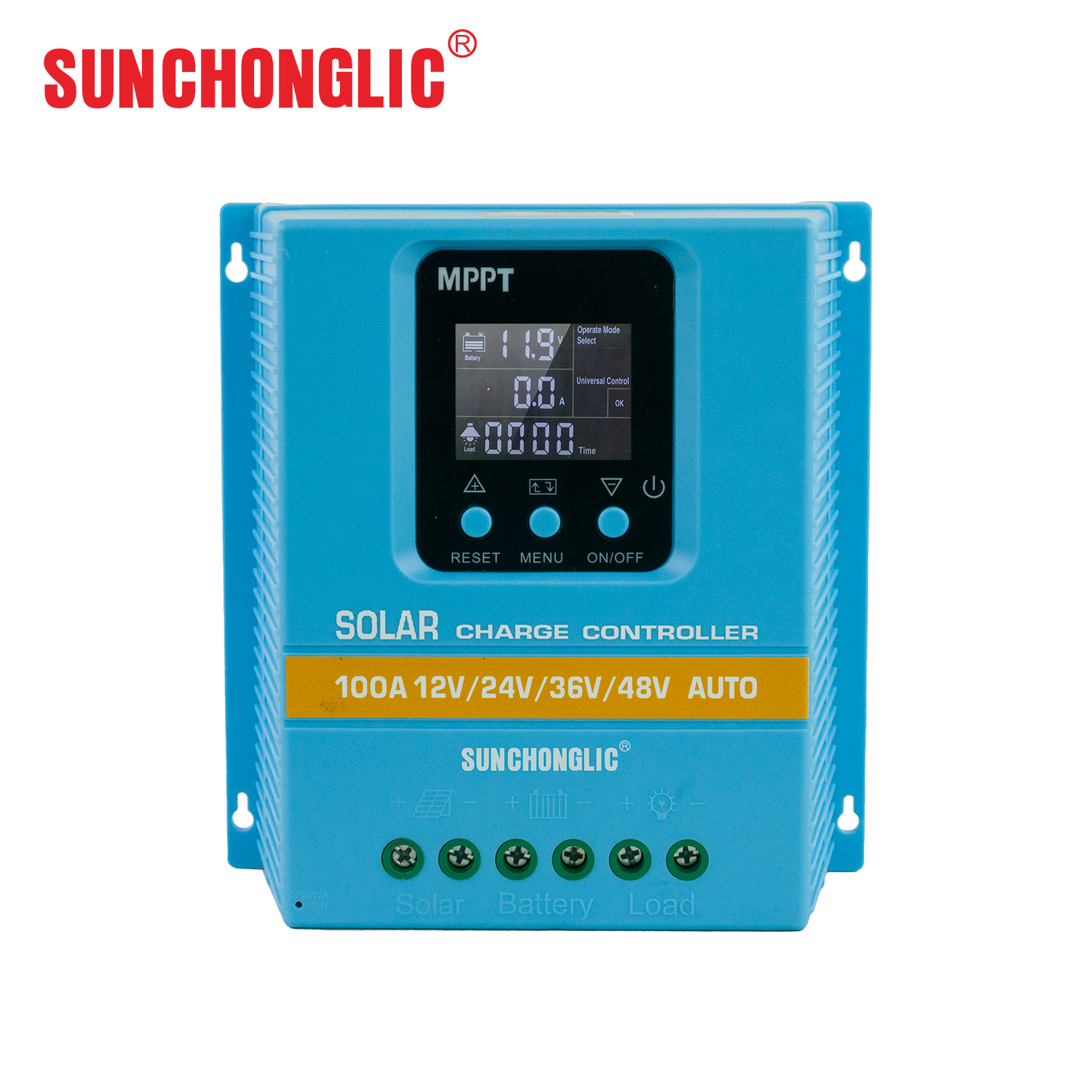

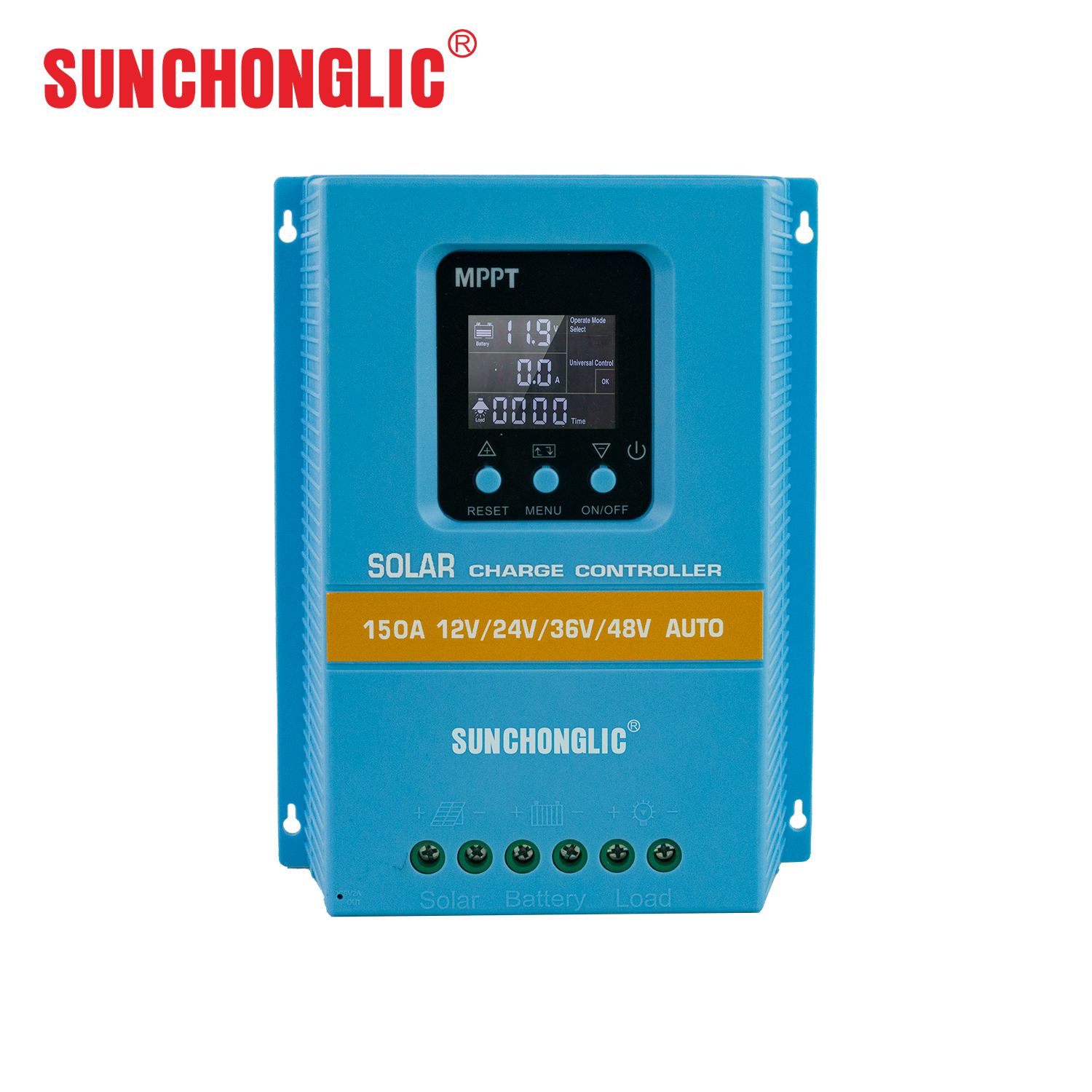

What is feature of smart 12v-48v 100a 150a mppt solar charge controller for residential solar power use?
1.Wide-Range Electrical Compatibility: Supporting system voltages from 12V to 96V and a wide current range of 40A to 150A, it is suitable for solar power systems of various scales.
2.Comprehensive Battery Protection: Equipped with precise charge/discharge protection thresholds and recovery settings, it effectively prevents battery over-charging and over-discharging to ensure long battery life and system safety.
3.Versatile Smart Operation Modes: Offers six selectable modes, including Manual, Universal, Timer, Light Control, and Light Control + Delay, to cater to diverse load management requirements.

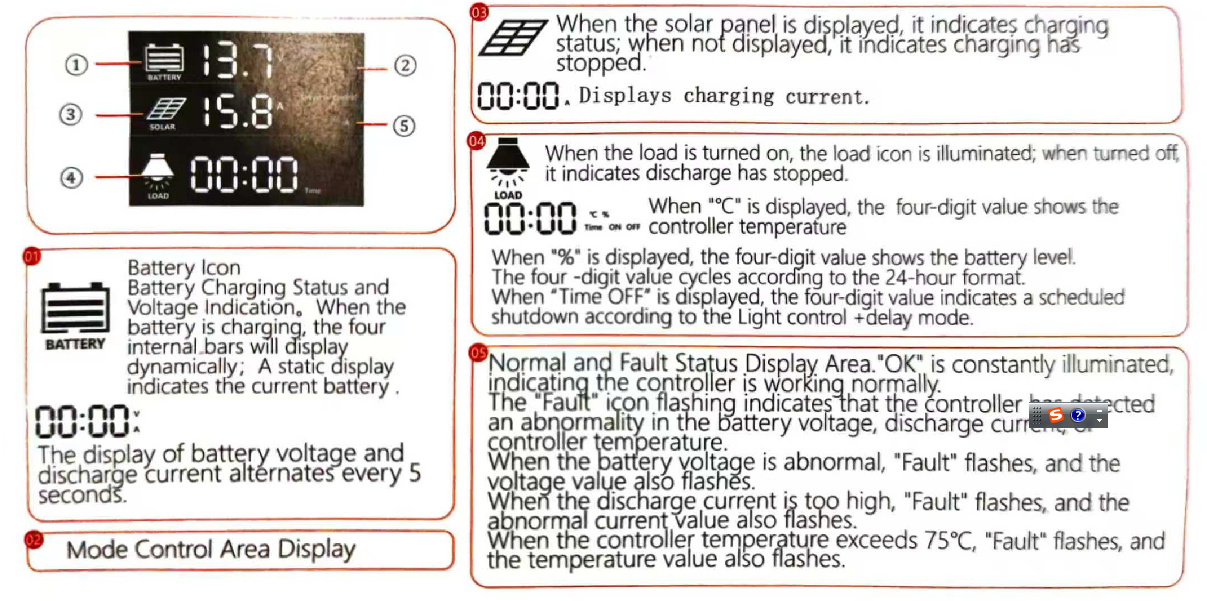

Real-Time Status Monitoring: Features an intuitive LCD that displays key operational parameters such as battery voltage, charge/discharge current, remaining capacity, and temperature, along with clear fault indicators.

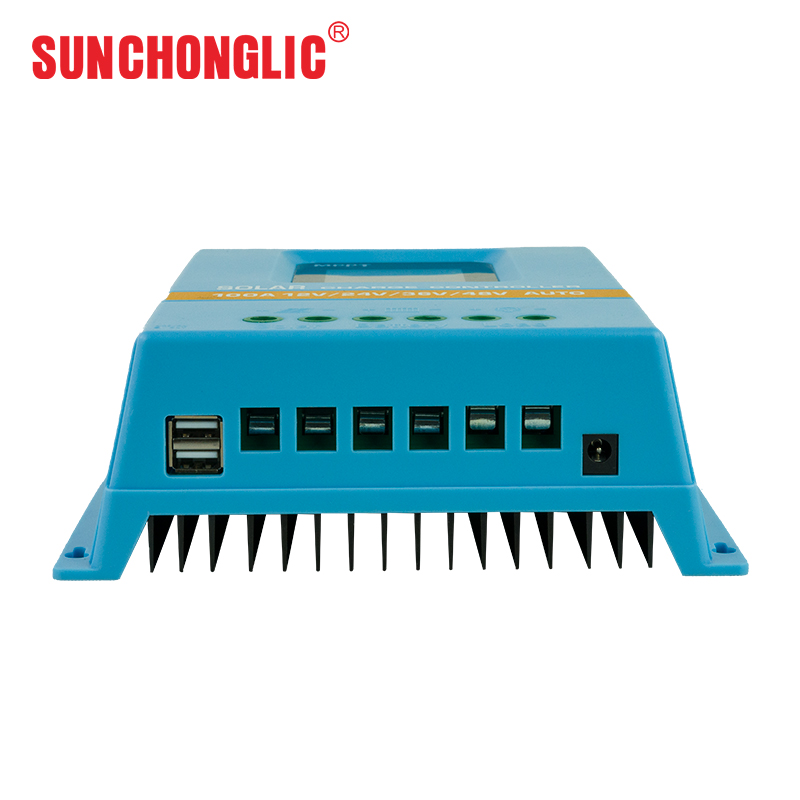

4.Flexible Power Supply Interfaces: Comes with dual USB ports and a DC output port for convenient power delivery to various electronic devices.
Durable and User-Friendly Design: Supports one-touch factory reset, customizable screen timeout, and maintains stable operation across a wide temperature range from -25°C to 55°C.
>>>Product Specifications
| Model | SA48-100A | SA48-150A | |
| Rated Voltage | 12V / 24V / 36V / 48V | ||
| Rated Current | 100A | 150A | |
| Max PV Voltage | 100V | ||
| Max PV Input Power | 1200W(12V) 2400W(24V) 3600W(36V) 4800W(48V) | ||
| Working Temperature | -25℃~55℃ | ||
| Low-voltage Protection | 12V | 10.5V | |
| 24V | 21V | ||
| 36V | 31.5V | ||
| 48V | 42V | ||
| Recovery Discharge | 12V | 11.5V | |
| 24V | 23V | ||
| 36V | 34.5V | ||
| 48V | 46V | ||
| High-voltage Protection | 12V | 14.8V | |
| 24V | 29.6V | ||
| 36V | 44.8V | ||
| 48V | 59.2V | ||
| Recovery Charging | 12V | 14.2V | |
| 24V | 28.4V | ||
| 36V | 42.6V | ||
| 48V | 56.8V | ||
With over two decades of deep-seated expertise in solar photovoltaic innovation, we stand as a specialized
manufacturer at the forefront of technology. Our high-efficiency solar inverters are engineered with
cutting-edge production technologies, backed by a robust R&D team and internationally recognized
certifications including ISO and CE. We are committed to delivering reliable, cost-effective renewable
energy solutions to the global market, supported by optimized European distribution networks for
swift and seamless access.
For detailed specifications or to discuss your project, our team is ready to assist.
